Slim XLIGHT

The airbrush for primers, an easy-to-use entry level at an extra light price

The latest addition to the family, the SLIM XLIGHT combines the reliability of the historic SLIM model with new technical / technological solutions that make it more attractive, light, reliable and performing.

Exploded View PDF PDF Catalogue PDF Instructions

discover all the Slim XLIGHT serie

Slim XLIGHT S HALO POM C 680 cc with regulator

Ref.: 8230**
Tank: POM C 680 cc
Body: Matte finish-planed aluminium
Lever: PPA / glass fiber
Top Cap: Anodized aluminum
Nozzle: AISI 303 stainless steel
Needle-spring: AISI 303 stainless steel
Seal gaskets: PTFE (Teflon)
Weight: 455 g
Working pressure: 0.5 - 2.5 bar/recommended at 2 bar
Air consumption: 260l/min at 2 bar
Nozzle diameters: 1.0 - 1.1 - 1.2 - 1.3 - 1.4 - 1.5 - 1.7 - 1.8 - 1.9 - 2.2 - 2.5
Regulator: Air inlet pressure regulator with pressure gauge
: Add noozle diameter to Ref. (**)

Slim XLIGHT S HALO - Aluminium 750 cc with regulator

Ref.: 8235**
Tank: alluminio 750 cc
Body: Matte finish-planed aluminium
Lever: PPA / glass fiber
Top Cap: Anodized aluminum
Nozzle: AISI 303 stainless steel
Needle-spring: AISI 303 stainless steel
Seal gaskets: PTFE (Teflon)
Weight: 455 g
Working pressure: 0.5 - 2.5 bar/recommended at 2 bar
Air consumption: 260l/min at 2 bar
Nozzle diameters: 1.0 - 1.1 - 1.2 - 1.3 - 1.4 - 1.5 - 1.7 - 1.8 - 1.9 - 2.2 - 2.5
Regulator: Air inlet pressure regulator with pressure gauge
: Add noozle diameter to Ref. (**)

slim_x_i_hte_autoclave

Slim XLIGHT S HALO SR - POM C 680 cc

Ref.: 8220**
Tank: POM C 680 cc
Body: Matte finish-planed aluminium
Lever: PPA / glass fiber
Cap: Anodized aluminum
Nozzle: AISI 303 stainless steel
Needle-spring: AISI 303 stainless steel
Seal gaskets: PTFE (Teflon)
Weight: 455 g
Working pressure: range 0.5 - 2.5 bar/recommended at 2 bar
Air consumption: 260l/min at 2 bar
Nozzle diameters: 1.0 - 1.1 - 1.2 - 1.3 - 1.4 - 1.5 - 1.7 - 1.8 - 1.9 - 2.2 - 2.5
: Add noozle diameter to Ref. (**)

Slim XLIGHT S HALO SR - alluminio 750 cc

Ref.: 8225**
Tank: alluminio 750 cc
Body: Matte finish-planed aluminium
Lever: PPA / glass fiber
Cap: Anodized aluminum
Nozzle: AISI 303 stainless steel
Needle-spring: AISI 303 stainless steel
Seal gaskets: PTFE (Teflon)
Weight: 455 g
Working pressure: range 0.5 - 2.5 bar/recommended at 2 bar
Air consumption: 260l/min at 2 bar
Nozzle diameters: 1.0 - 1.1 - 1.2 - 1.3 - 1.4 - 1.5 - 1.7 - 1.8 - 1.9 - 2.2 - 2.5
: Add noozle diameter to Ref. (**)

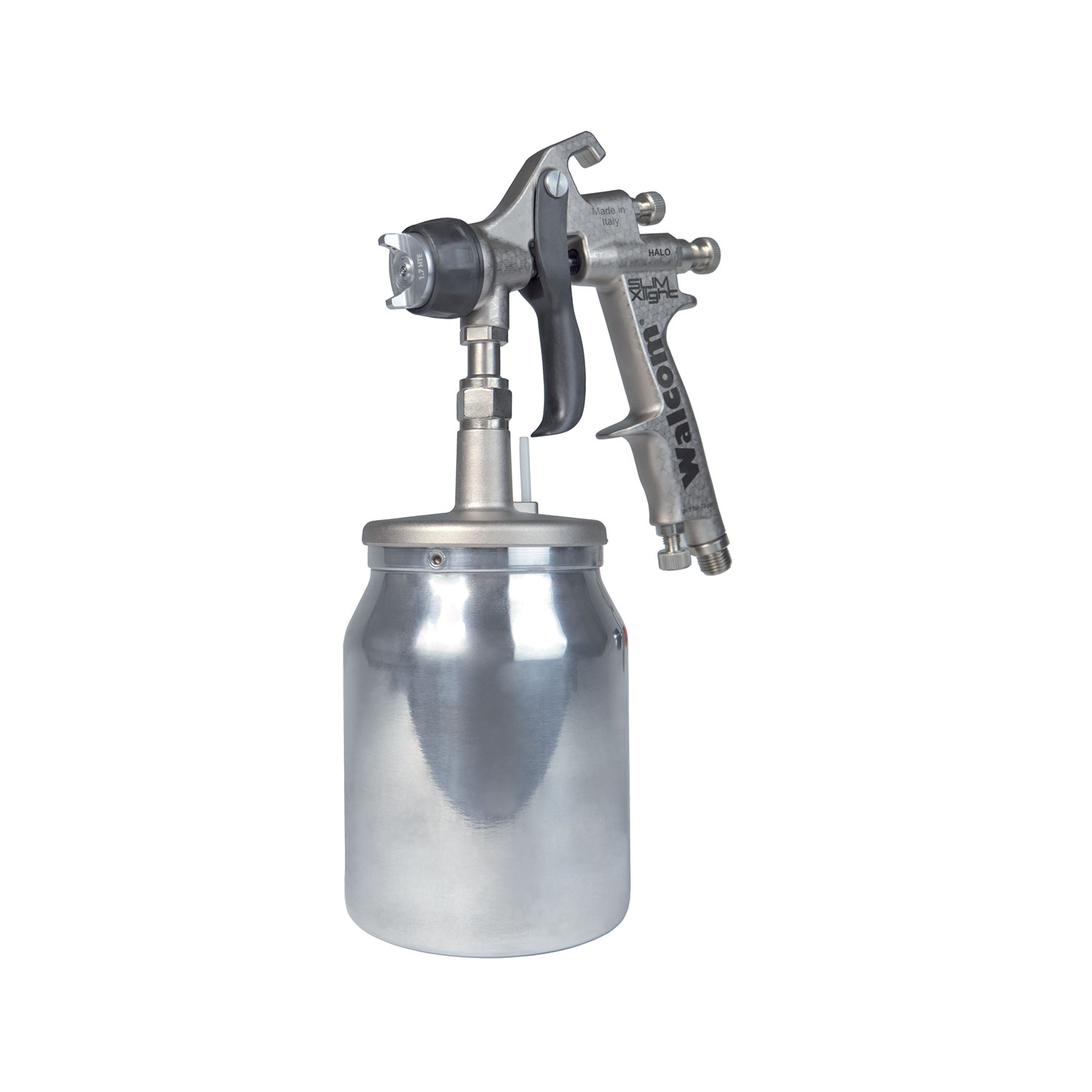

Slim XLIGHT I HALO SR

Ref.: 8272**
Tank: Camlock suction cup aluminium 1000 cc
Body: Matte finish planed aluminium
Lever: PPA/glass fiber
Cap: Anodized aluminum
Nozzle: AISI 303 stainless steel
Needle-spring: AISI 303 stainless steel
Seal gaskets: PTFE (Teflon)
Weight: 463 g
Working pressure: range 0.5 - 2.5 bar / recommended at 2 bar
Air consumption: 260 l/min at 2 bar
Nozzle diameters: 1.0 - 1.2 - 1.3 - 1.4 - 1.7 - 1.9
: Add noozle diameter to Ref. (**)

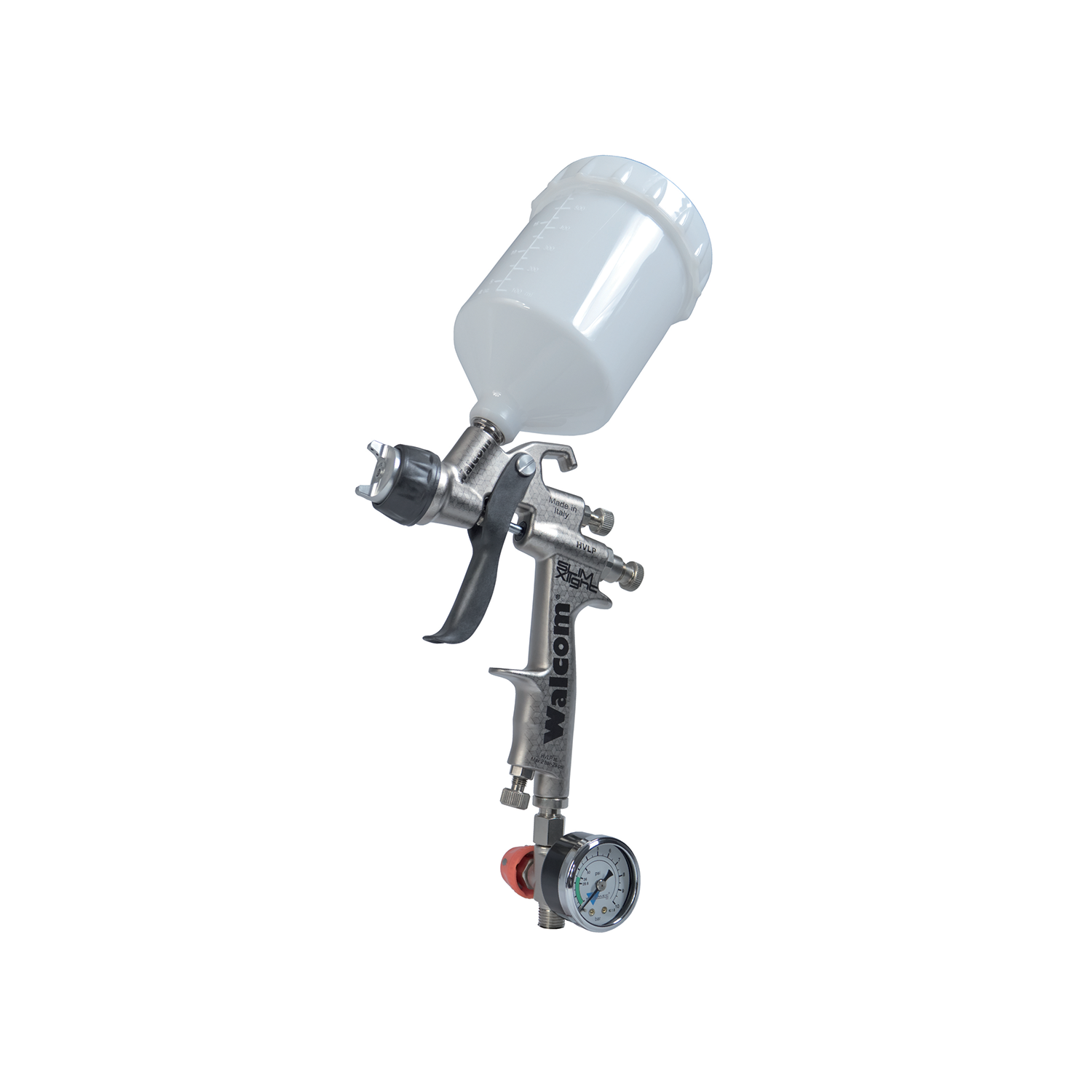

Slim XLIGHT S HVLP - POM C 680 cc with regulator

Ref.: 8330**
Tank: POM C 680 cc
Body: Matte finish-planed aluminium
Lever: PPA / glass fiber
Top Cap: Anodized aluminum
Nozzle: AISI 303 stainless steel
Needle-spring: AISI 303 stainless steel
Seal gaskets: PTFE (Teflon)
Weight: 455 g
Working pressure: 0.5 - 2.5 bar/HVLP at 2 bar
Air consumption: 295l/min at 2 bar
Nozzle diameters: 1.0 - 1.1 - 1.2 - 1.3 - 1.4 - 1.5 - 1.7 - 1.8 - 1.9 - 2.2 - 2.5
Regulator: Air inlet pressure regulator with pressure gauge
: Add noozle diameter to Ref. (**)

Slim XLIGHT S HVLP - Aluminium 750 cc with regulator

Ref.: 8335**
Tank: Aluminium 750 cc
Body: Matte finish-planed aluminium
Lever: PPA / glass fiber
Top Cap: Anodized aluminum
Nozzle: AISI 303 stainless steel
Needle-spring: AISI 303 stainless steel
Seal gaskets: PTFE (Teflon)
Weight: 455 g
Working pressure: 0.5 - 2.5 bar/HVLP at 2 bar
Air consumption: 295l/min at 2 bar
Nozzle diameters: 1.0 - 1.1 - 1.2 - 1.3 - 1.4 - 1.5 - 1.7 - 1.8 - 1.9 - 2.2 - 2.5
Regulator: Air inlet pressure regulator with pressure gauge
: Add noozle diameter to Ref. (**)

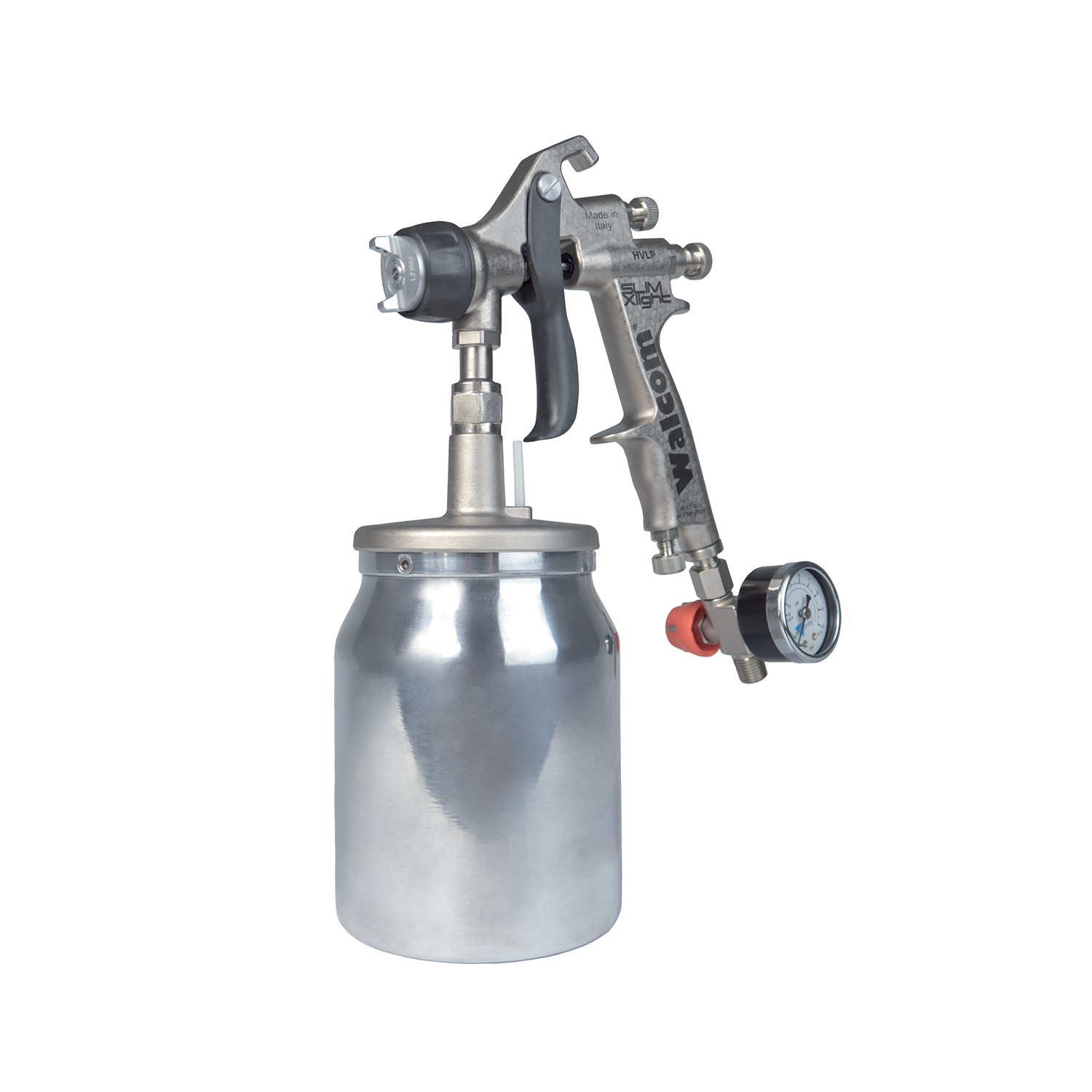

Slim XLIGHT I HVLP

Ref.: 8370**
Tank: Camlock suction cup aluminium 1000 cc
Body: Forged and chrome-planed aluminium
Lever: PPA / glass fiber
Top Cap: Chemical nickel-plated brass
Nozzle: AISI 303 stainless steel
Needle-spring: AISI 303 stainless steel
Seal gaskets: PTFE (Teflon)
Weight: 463 g
Working pressure: 0.5 - 2.5 bar/HVLP at 2 bar
Air consumption: 295l/min at 2bar
Nozzle diameters: 1.3 - 1.4 - 1.5 - 1.7 - 1.8 - 1.9 - 2.2
Regulator: Air inlet pressure regulator with pressure gauge
: Add noozle diameter to Ref. (**)

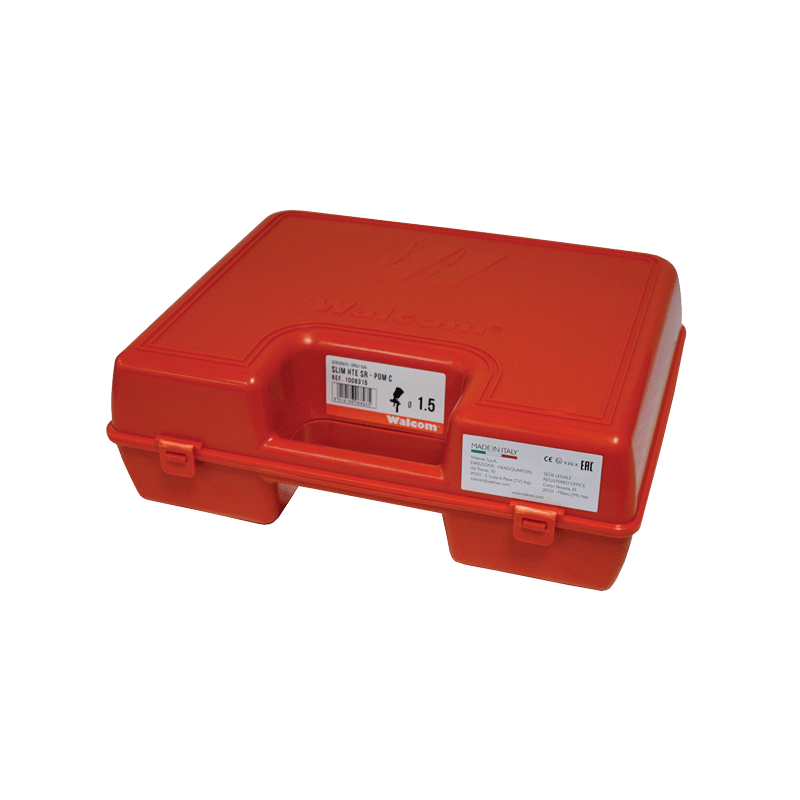

packaging

All spray guns of the Walcom® range are supplied in easy to use rigid plastic cases containing all the accessories for a proper cleaning and maintenance of the product.
