Ego Carbonio 190

IDEAL FOR Smart repair AND GRAPHICS

The process of total renewal and innovation of the range was integrated into the EGO, a spray gun dedicated to the refinish and smart repairs body shop. Thus, EGO CARBONIO was born, forged aluminum core, over-injection body carbon fiber body. Attention to every small detail, very light, easy to handle and, above all, excellent performance, EGO CARBONIO stands out for its characteristics that make it unique:

  • weight, only 190 grams
  • performance, thanks to the high-precision components machined on 5-axis CNC machining
  • atomization, with the new anodized "anticorodal" aluminum cap, designed specifically for a targeted, fine and precise application
  • strength and durability, obtained thanks to the mix of materials such as stainless steel, aluminum, brass and carbon fiber treated with nanotechnological processes for easier cleaning, and a safe resistance to chemical aggression. EGO CARBONIO represents the most sophisticated, from a design and production point of view, at the same time, it’s easier and more practical for the painter to use. A unique spray gun capable of a wide range of application of its kind, in line with the Walcom® philosophy, based on innovation and technology.

Exploded View PDF

discover all the Ego Carbonio 190 serie

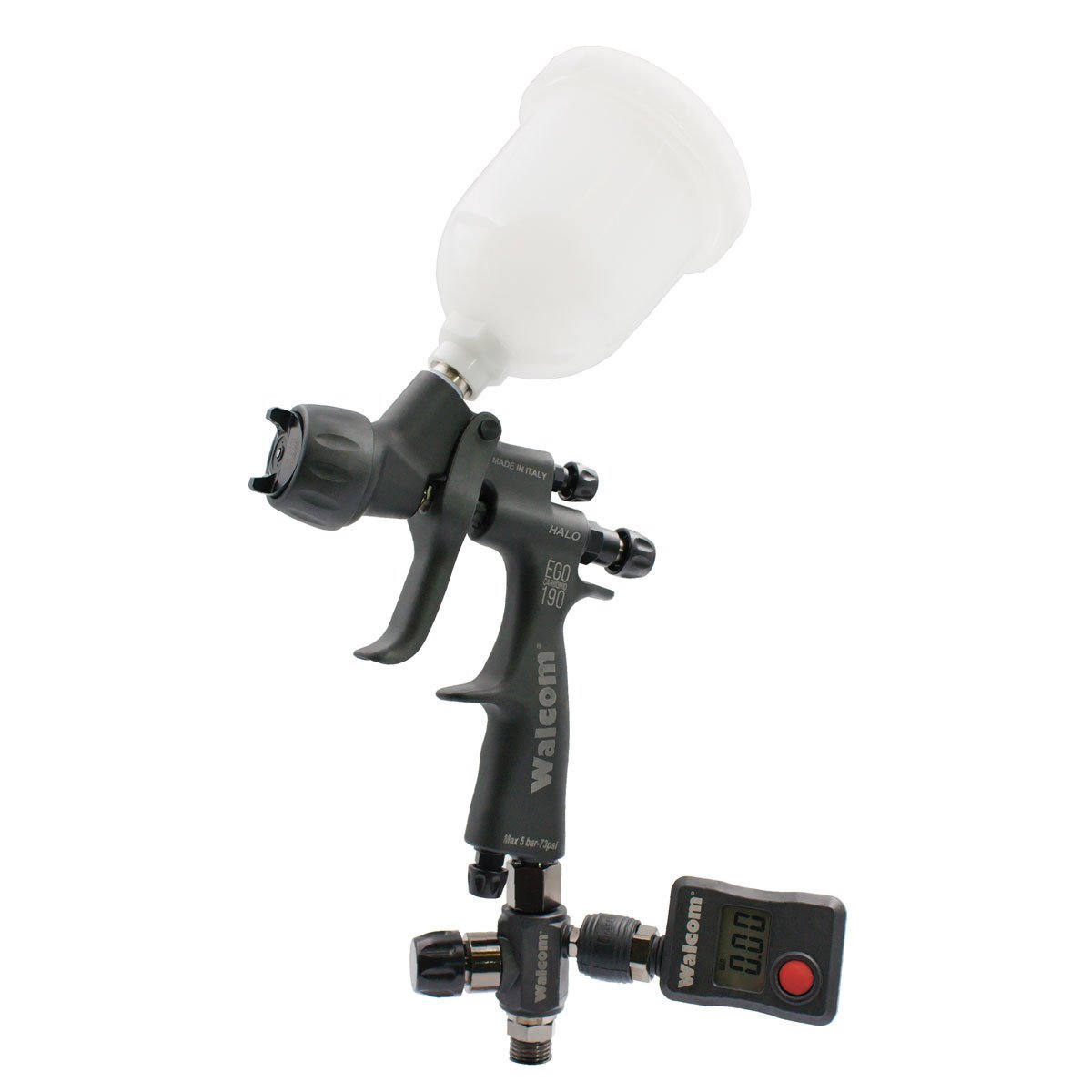

EGO Carbonio 190 HTE - POM 180 cc
Ref.
7030**
Tank
POM C 75 - 180 cc
Body
forged aluminum and carbon fiber
Trigger
carbon fiber
Air cap
anodized aluminium
Nozzle
stainless steel AISI 303
Needle-spring
inox AISI 303
Seal gaskets
Self-lubricating and adjustable PTFE (Teflon)
Weight
190 g
Working pressure
0.5 - 2.0 bar
Air consumption
145 l/min
Nozzle diameters
0,5 - 0,7 - 1,0 - 1,2 - 1,4
Add noozle diameter to Ref. (**). Digital pressure gauge and air control regulator with quick connection sytem, made of carbon fiber. Swiveling fitting.

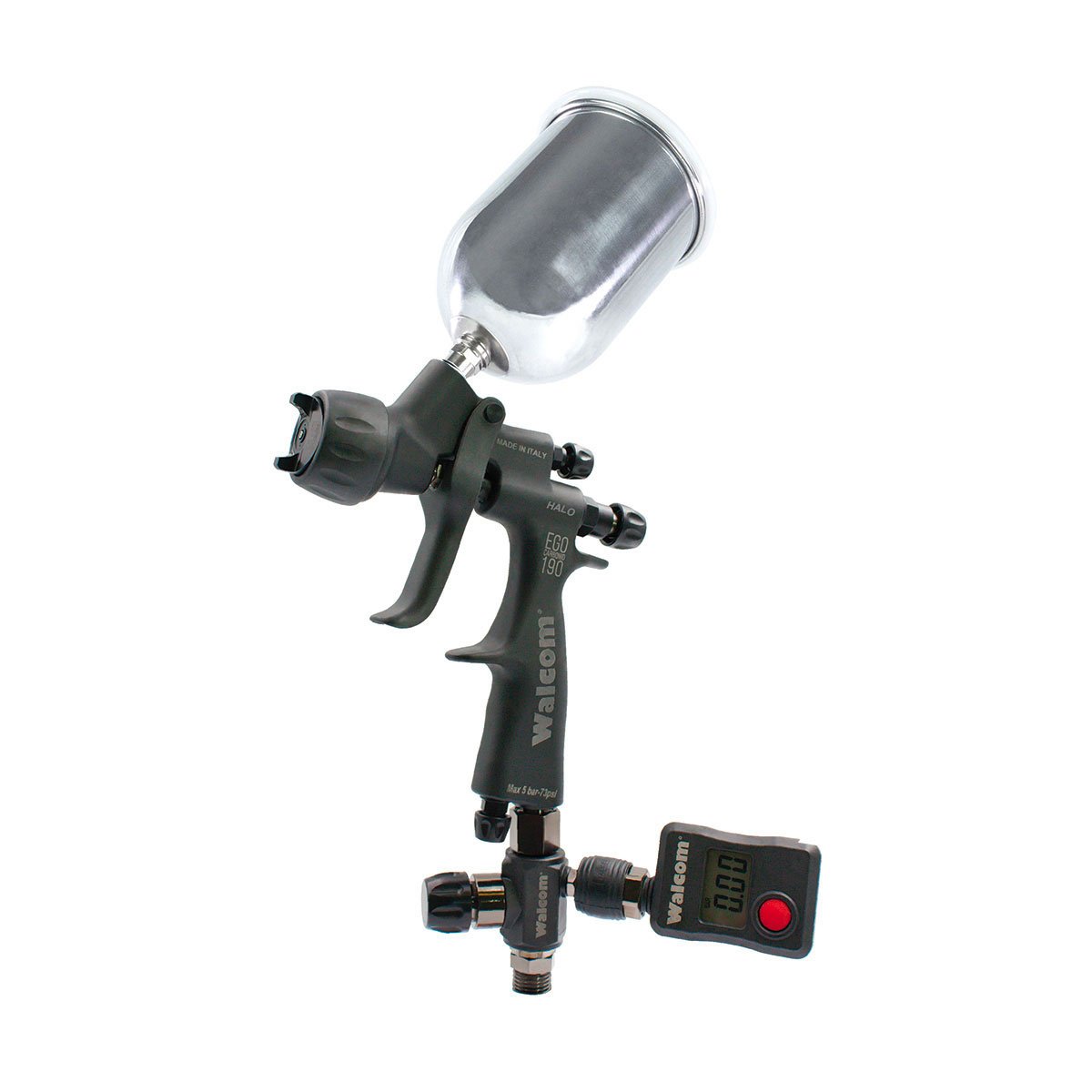

EGO Carbonio 190 HTE - Aluminium 125 cc
Ref.
7035**
Tank
aluminum 125 cc
Body
forged aluminum and carbon fiber
Trigger
carbon fiber
Air cap
anodized aluminium
Nozzle
stainless steel AISI 303
Needle-spring
inox AISI 303
Seal gaskets
Self-lubricating and adjustable PTFE (Teflon)
Weight
190 g
Working pressure
0.5 - 2.0 bar
Air consumption
145 l/min
Nozzle diameters
0,5 - 0,7 - 1,0 - 1,2 - 1,4
Add noozle diameter to Ref. (**). Digital pressure gauge and air control regulator with quick connection sytem, made of carbon fiber. Swiveling fitting.
EGO Carbonio 190 HVLP - POM 180 cc
Ref.
7130**
Tank
POM C 75 - 180 cc
Body
forged aluminum and carbon fiber
Trigger
carbon fiber
Air cap
anodized aluminium
Nozzle
stainless steel AISI 303
Needle-spring
inox AISI 303
Seal gaskets
Self-lubricating and adjustable PTFE (Teflon)
Weight
190 g
Working pressure
0.5 - 2.0 bar
Air consumption
145 l/min
Nozzle diameters
0,5 - 0,7 - 1,0 - 1,2 - 1,4
Add noozle diameter to Ref. (**). Digital pressure gauge and air control regulator with quick connection sytem, made of carbon fiber. Swiveling fitting.
EGO Carbonio 190 HVLP - Aluminium 125 cc
Ref.
7135**
Tank
aluminum 125 cc
Body
forged aluminum and carbon fiber
Trigger
carbon fiber
Air cap
anodized aluminium
Nozzle
stainless steel AISI 303
Needle-spring
inox AISI 303
Seal gaskets
Self-lubricating and adjustable PTFE (Teflon)
Weight
190 g
Working pressure
0.5 - 2.0 bar
Air consumption
145 l/min
Nozzle diameters
0,5 - 0,7 - 1,0 - 1,2 - 1,4
Add noozle diameter to Ref. (**). Digital pressure gauge and air control regulator with quick connection sytem, made of carbon fiber. Swiveling fitting.

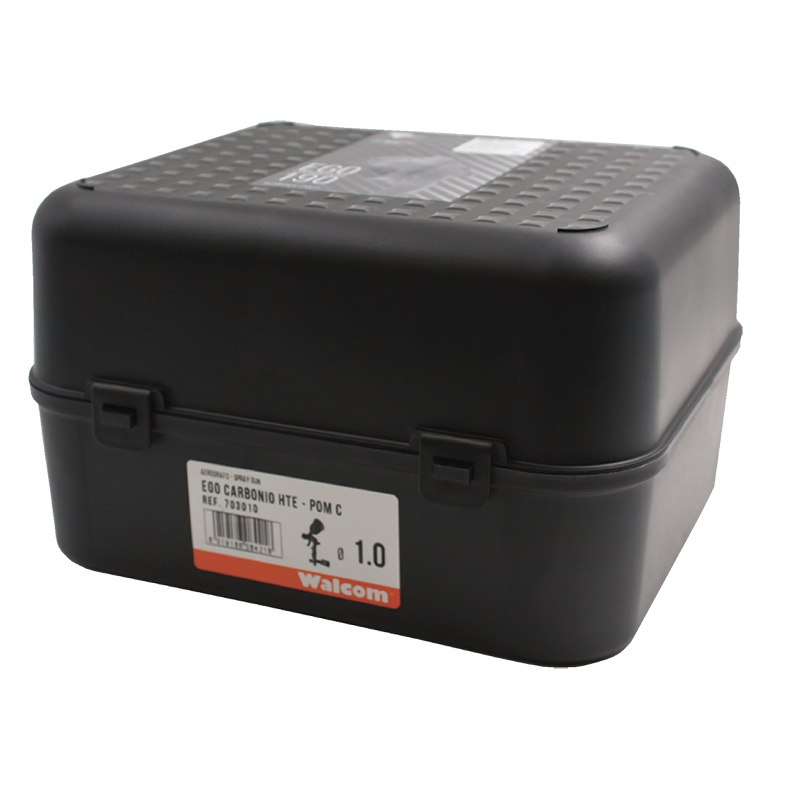

packaging

Valigetta in plastica rigida comprendente aerografo, regolatore di pressione con manometro, kit guarnizioni molle, spazzolino, chiave di servizio, manuale istruzioni, garanzia.

packaging
