Genesi Carbonio 360 HTE Base
Ideal for solvent and waterborne materials
HTE by Walcom, more than 20 years of experience with the most popular technology in the marker, the paint system that combines adequate atomizing pressure and high transferred efficiency, certified by international independent laboratory and research institutes. The specific base air cap HP - High paint layout with proper distribution and flow orientation, 12 holes nozzle, precise and wide range of adjustment for fan and paint flow, are details that makes it a unique piece of equipment in the refinish application of the latest generation products.
discover all the Genesi Carbonio 360 HTE Base serie
- Ref.

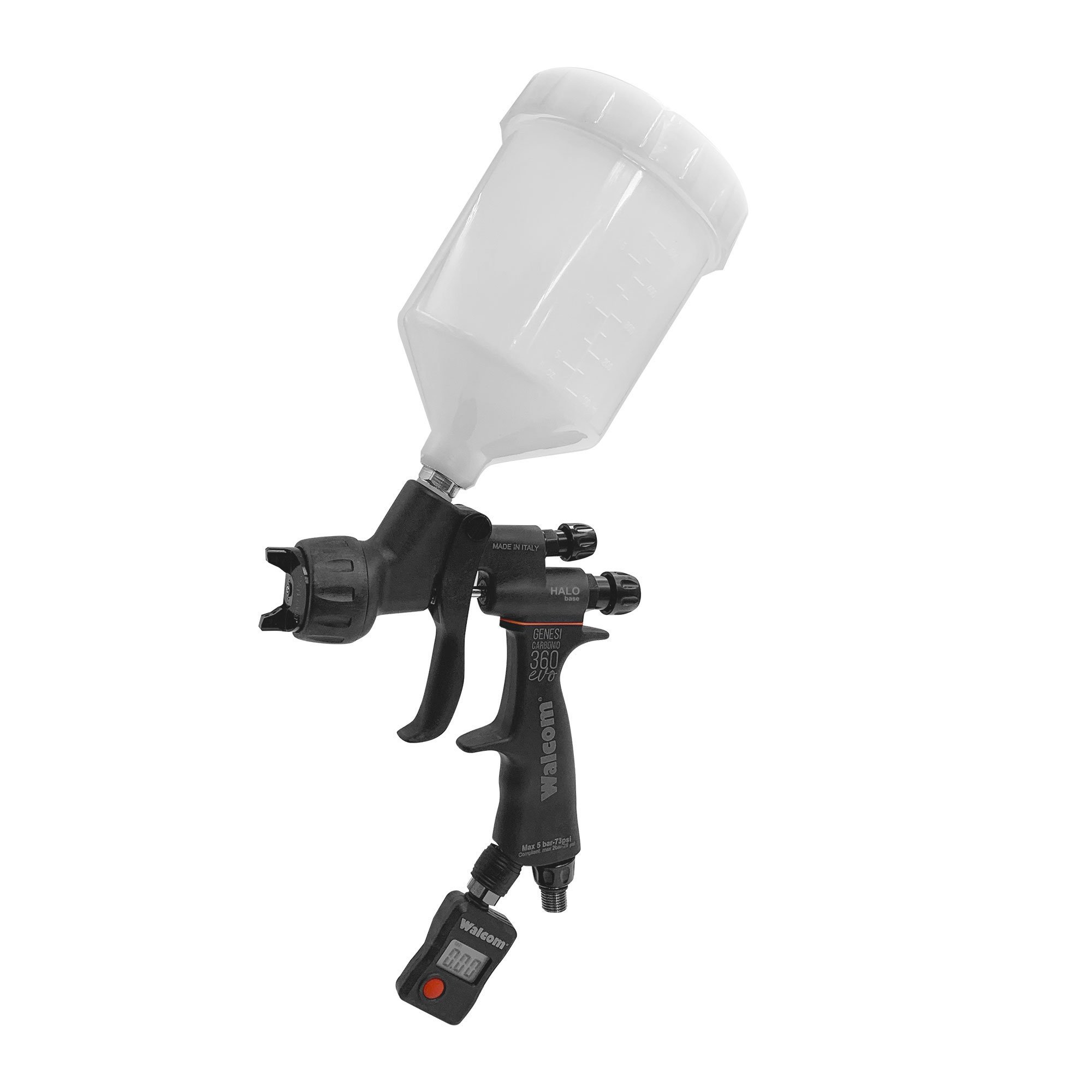

- 9730**
- Cup

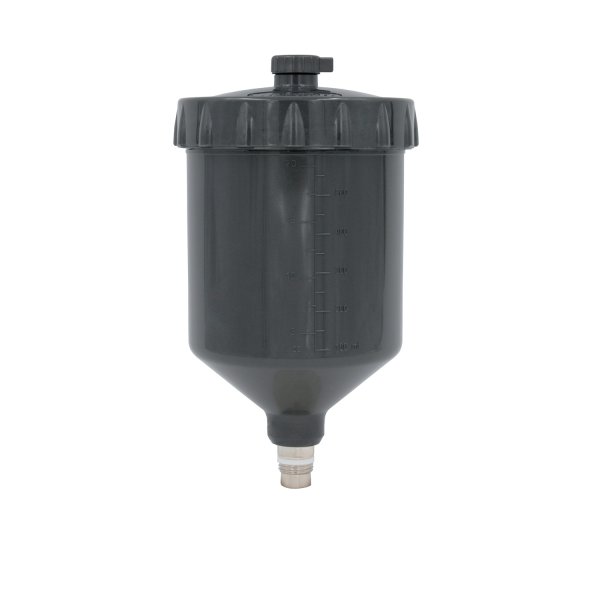

- POM C 680 cc
- Body
- Forged aluminum and carbon fiber
- Handle/Trigger
- Carbon fiber
- Aircap HP
- Chemically nickeled plated brass
- Air cap ring
- Carbon fiber
- Needle/Spring/Noozle
- Stainless stell AISI 303
- Seals
- PTFE (teflon) self and adjsuting and manual regulation
- Weight
- 360 g
- Operating air pressure
- 2.0 bar
- Air consumption
- 350 l/min
- Nozzle diameters
- 1.0 - 1.2 - 1.3 - 1.4 - 1.7 - 1.9
- Regulator

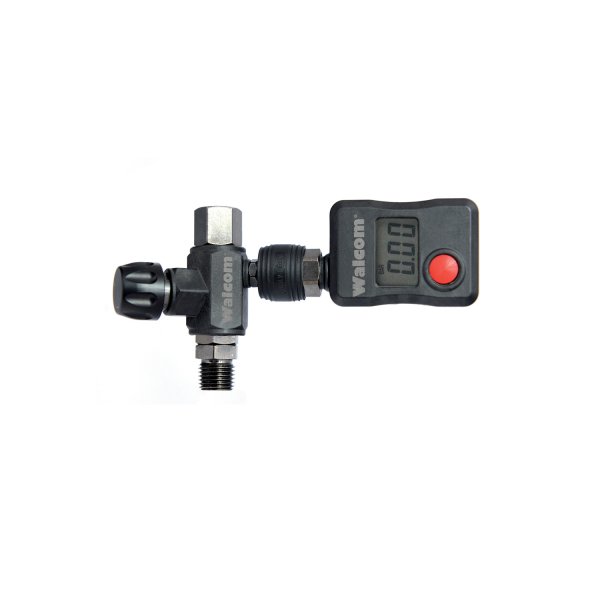

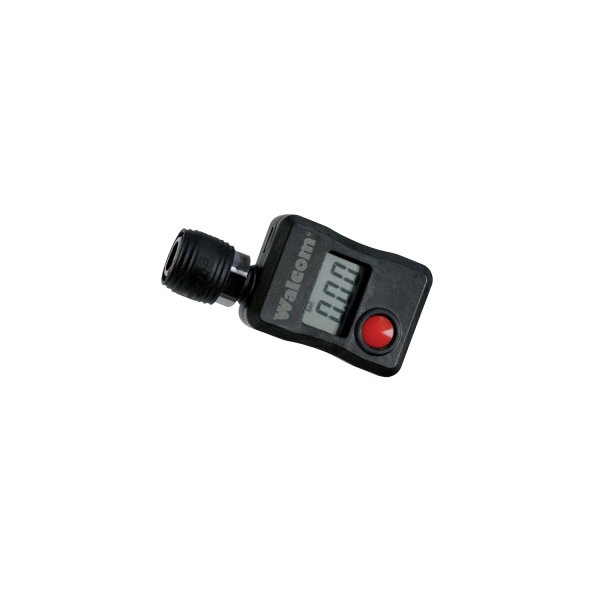

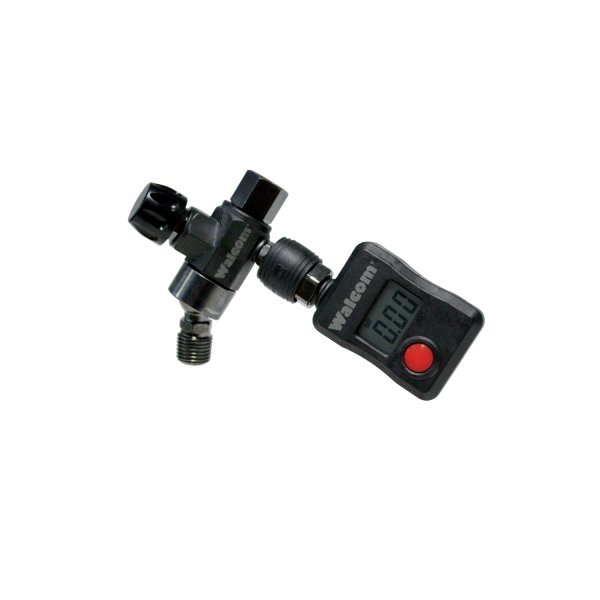

- Digital pressure gauge and air control regulator with quick connection sytem, made of carbon fiber. 30° articulated fiing.
- Add noozle diameter to Ref. (**)
- Ref.

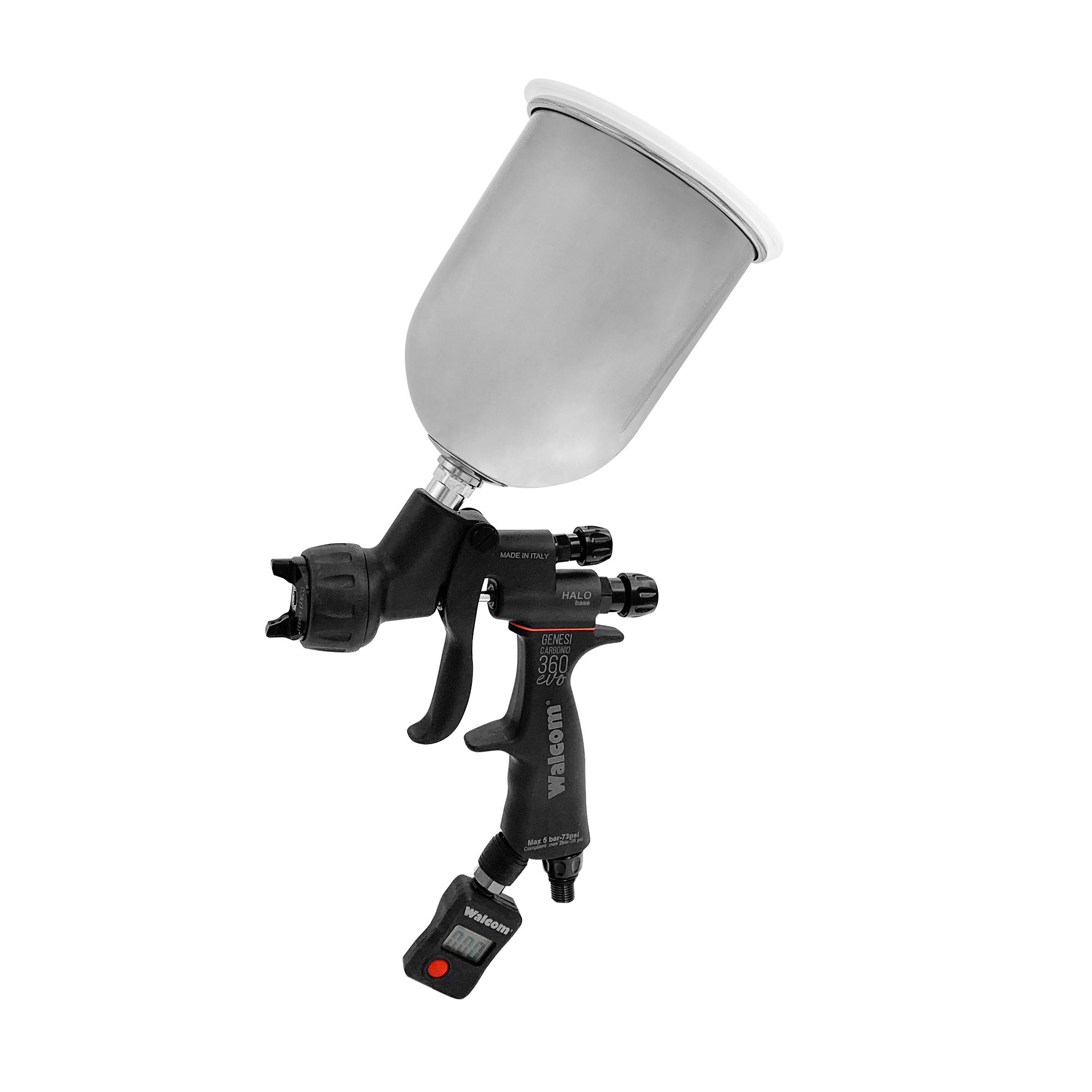

- 9735**
- Cup

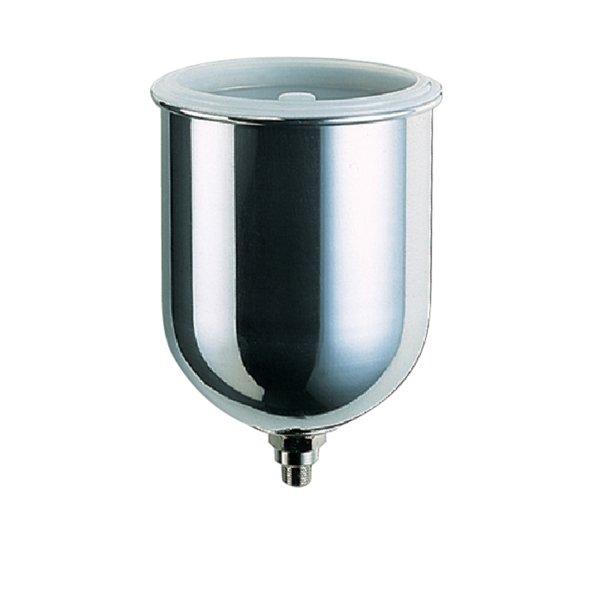

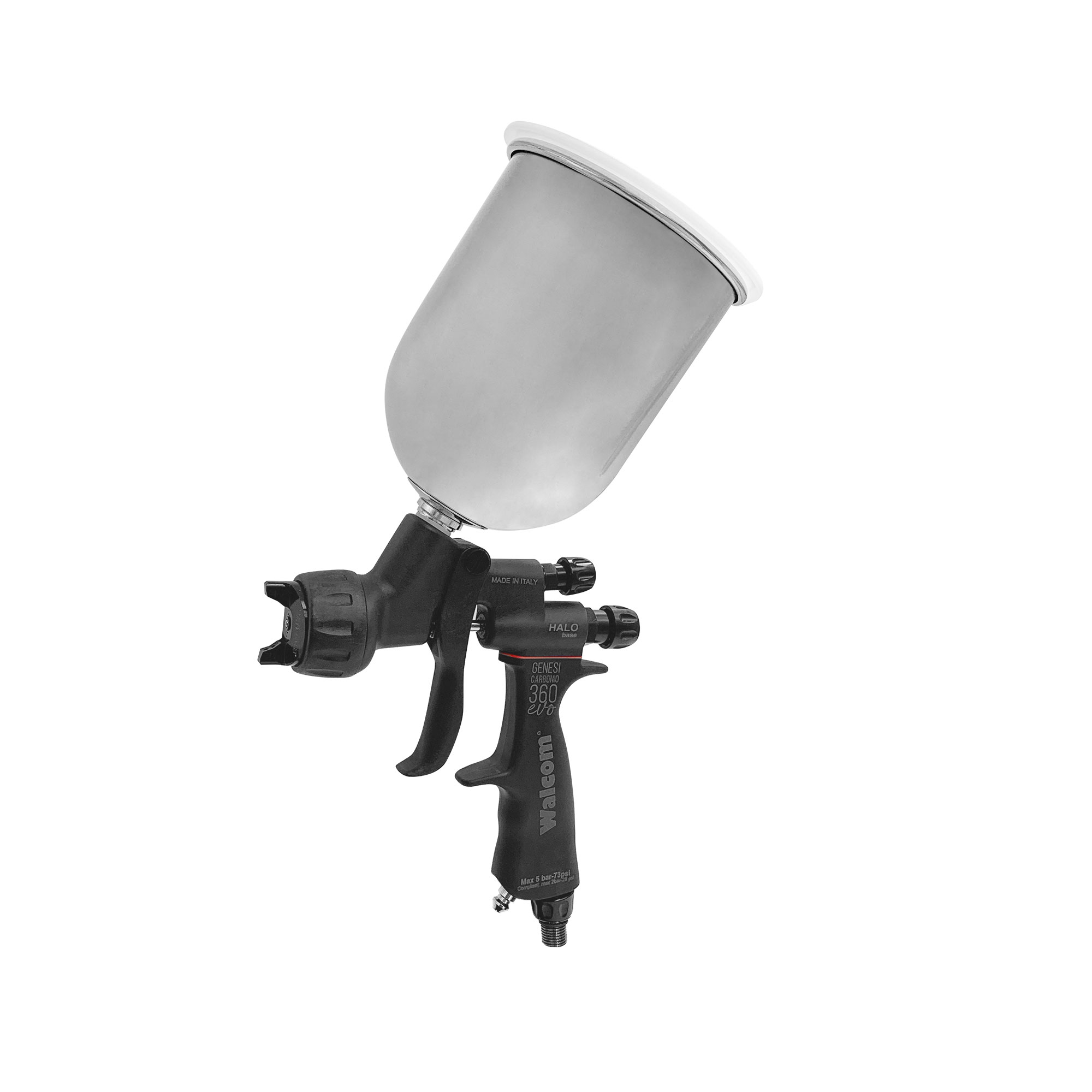

- Aluminium 750 cc
- Body
- Forged aluminum and carbon fiber
- Handle/Trigger
- Carbon fiber
- Aircap HP
- Chemically nickeled plated brass
- Air cap ring
- Carbon fiber
- Needle/Spring/Noozle
- Stainless stell AISI 303
- Seals
- PTFE (teflon) self and adjsuting and manual regulation
- Weight
- 360 g
- Operating air pressure
- 2.0 bar
- Air consumption
- 350 l/min
- Nozzle diameters
- 1.0 - 1.2 - 1.3 - 1.4 - 1.7 - 1.9
- Regulator
- Digital pressure gauge and air control regulator with quick connection sytem, made of carbon fiber. 30° articulated fiing.
- Add noozle diameter to Ref. (**)
- Ref.
- 9720**
- Cup
- POM C 680 cc
- Body
- Forged aluminum and carbon fiber
- Handle/Trigger
- Carbon fiber
- Aircap HP
- Chemically nickeled plated brass
- Air cap ring
- Carbon fiber
- Needle/Spring/Noozle
- Stainless stell AISI 303
- Seals
- PTFE (teflon) self and adjsuting and manual regulation
- Weight
- 360 g
- Operating air pressure
- 2.0 bar
- Air consumption
- 350 l/min
- Nozzle diameters
- 1.0 - 1.2 - 1.3 - 1.4 - 1.7 - 1.9
- Add noozle diameter to Ref. (**)
- Ref.
- 9725**
- Cup
- Aluminium 750 cc
- Body
- Forged aluminum and carbon fiber
- Handle/Trigger
- Carbon fiber
- Aircap HP
- Chemically nickeled plated brass
- Air cap ring
- Carbon fiber
- Needle/Spring/Noozle
- Stainless stell AISI 303
- Seals
- PTFE (teflon) self and adjsuting and manual regulation
- Weight
- 360 g
- Operating air pressure
- 2.0 bar
- Air consumption
- 350 l/min
- Nozzle diameters
- 1.0 - 1.2 - 1.3 - 1.4 - 1.7 - 1.9
- Add noozle diameter to Ref. (**)
- Ref.

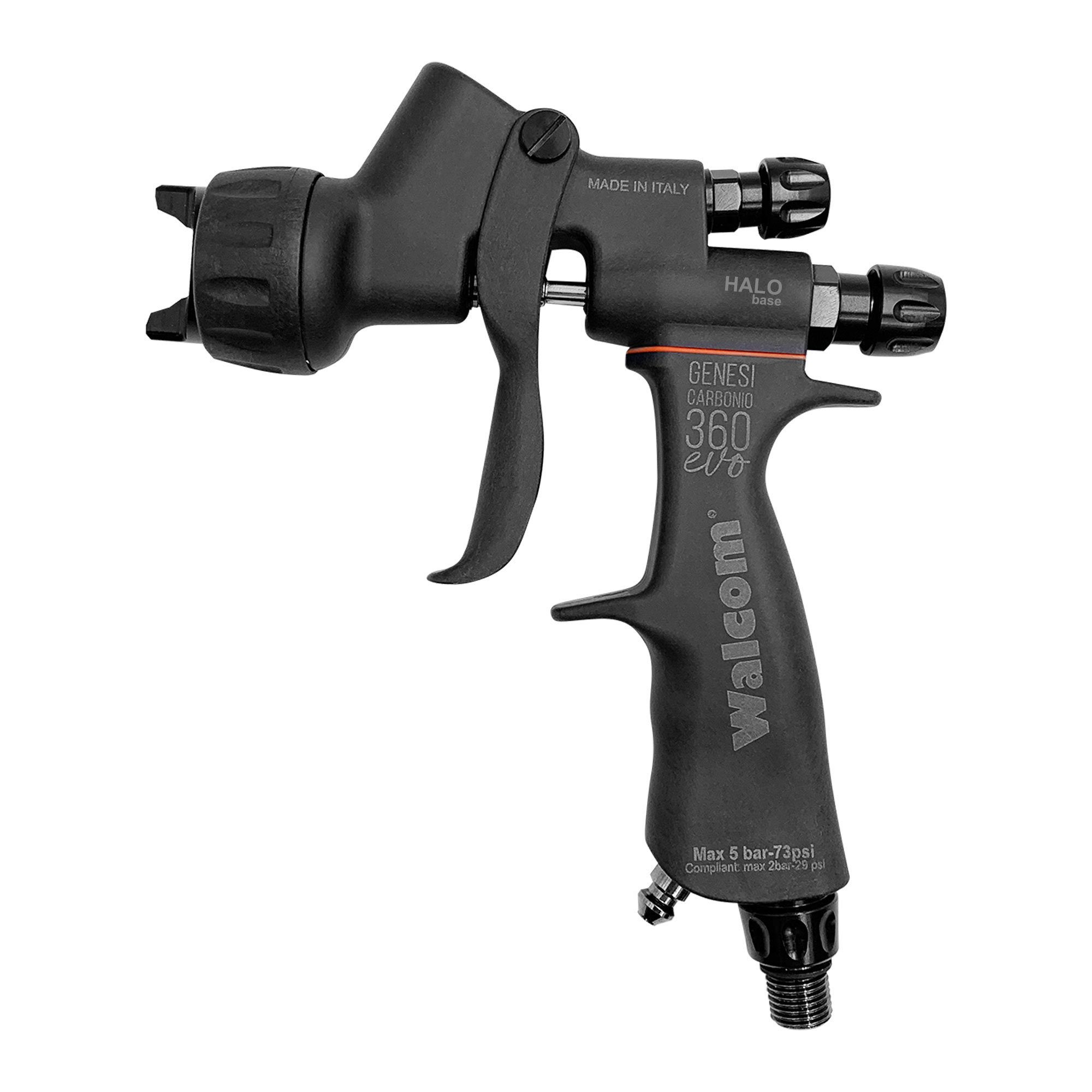

- 9760**
- Body
- Forged aluminum and carbon fiber
- Handle/Trigger
- Carbon fiber
- Aircap HP
- Chemically nickeled plated brass
- Air cap ring
- Carbon fiber
- Needle/Spring/Noozle
- Stainless stell AISI 303
- Seals
- PTFE (teflon) self and adjsuting and manual regulation
- Weight
- 360 g
- Operating air pressure
- 2.0 bar
- Air consumption
- 350 l/min
- Nozzle diameters
- 1.0 - 1.2 - 1.3 - 1.4 - 1.7 - 1.9
- Add noozle diameter to Ref. (**)

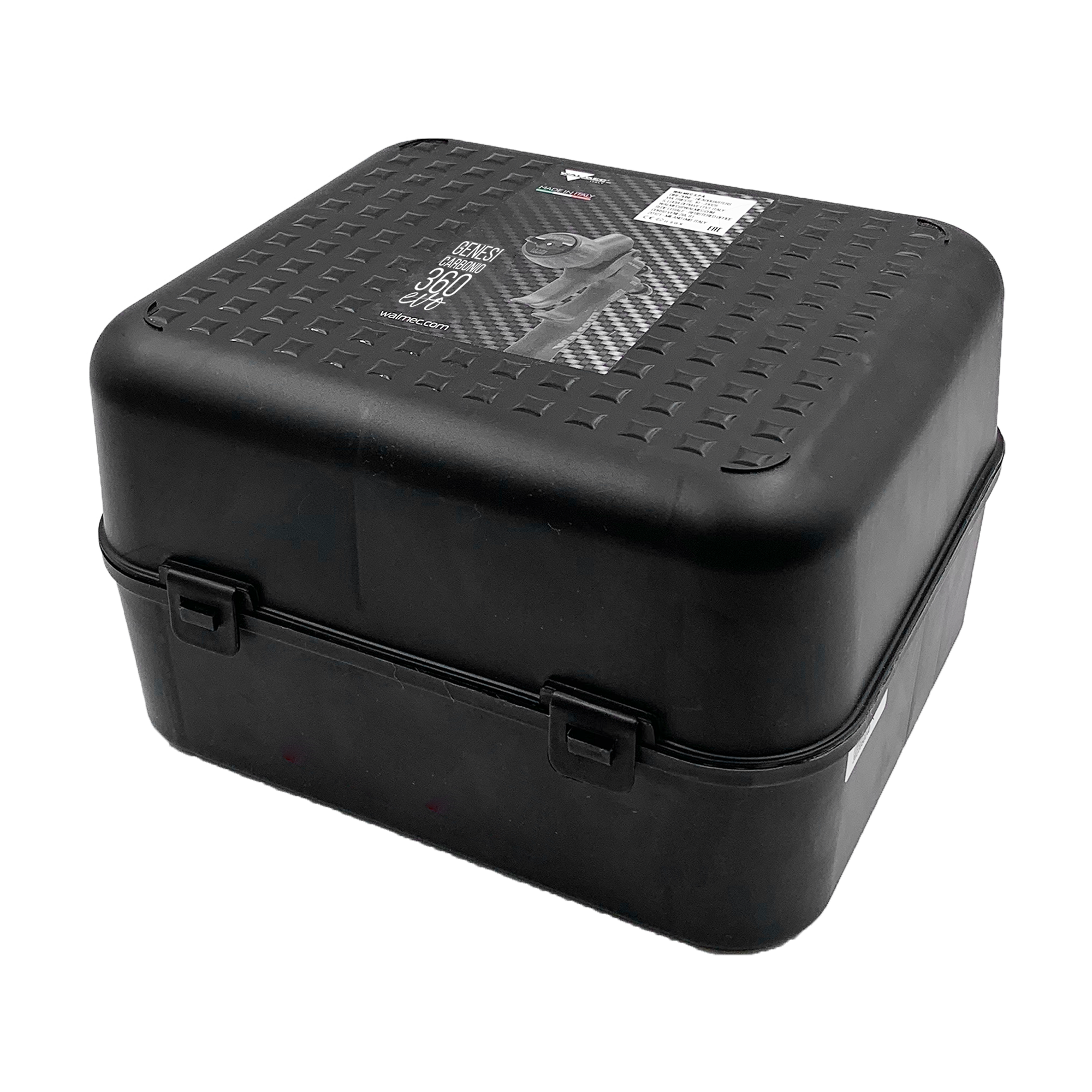

packaging
Two types of package: 1) BOX. Cardboard box package includes: sprayguns, rebuild kit (spring, seals, air valve) wrench tool, mineral lube oil, instruction manual and warranty. 2) SUITCASE. Rigid plastic suitcase includes: spraygun, air control with gauge ( for item id 9730** and 9735**), rebuild kit (spring, seals, air valve), cup, wrench tool, mineral lube oil, instruction manual and warranty.
