Slim (old serie)

Spraygun for sealer and primer

SLIM series, made from aluminum diecasting, was the previous model of the new KOMBAT SERIES made of magnesium and Kevlar, available as THE or HVLP version, it was a spraygun that represented the ideal compromise between quality and price for primer application, sealers, industrial applications, and woodworking industry.

discover all the Slim (old serie) serie

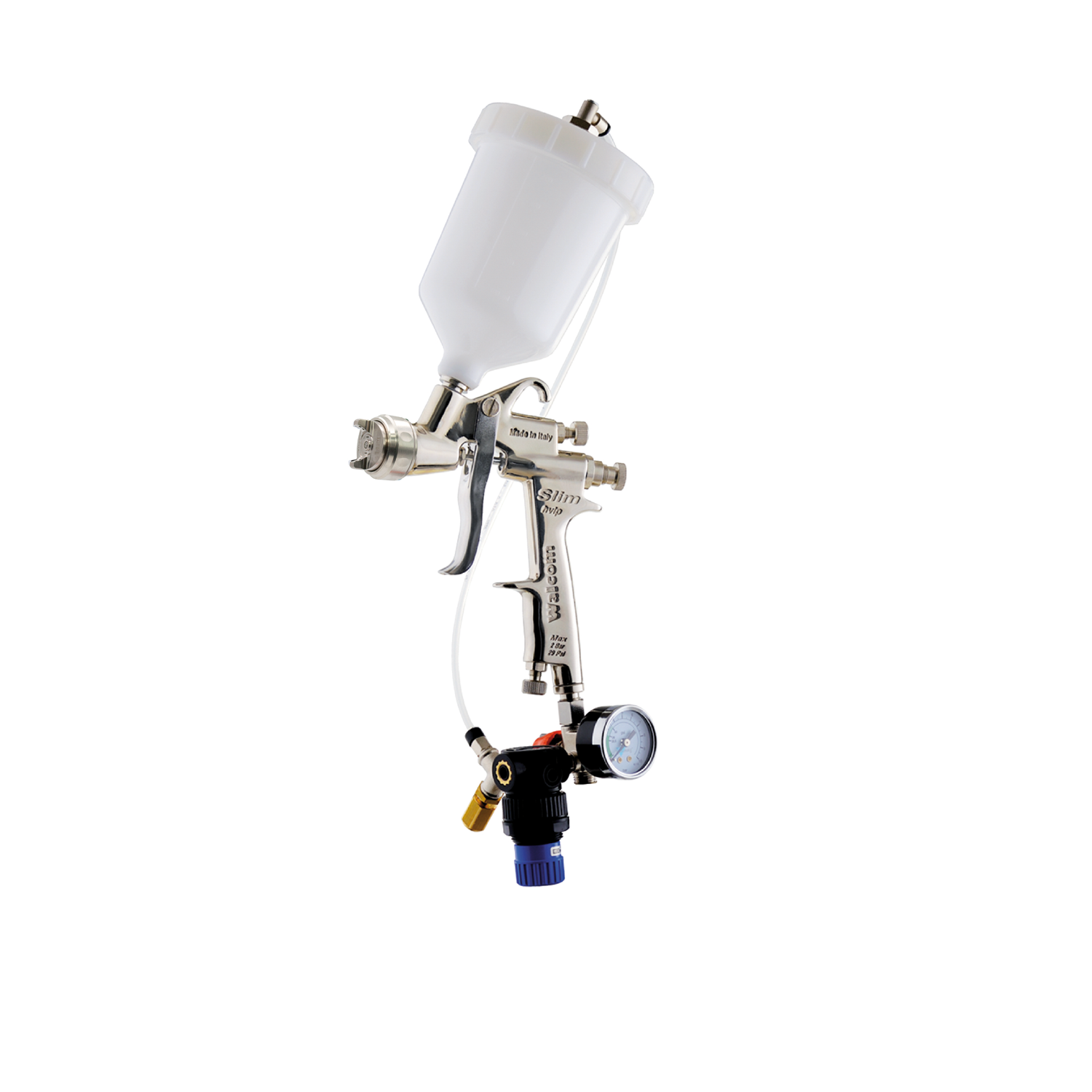

Slim HVLP HD
Ref.
10079**
Pressurized gravity cup
Product inlet M 1/4"
Body
Chemical nickel-plated polished aluminium
Cap
Chemical nickel-plated brass
Nozzle
AISI 303 stainless steel
Needle-spring
Stainless steel
Seal gaskets
Self-lubricating and adjustable PTFE (Teflon)
Weight
535 g
Working pressure
2.0 - 2.5 bar
Air consumption
200 - 240 l/min
Nozzle diameters
1.3 - 1.5 - 1.7 - 1.9 - 2.2
Regulator
Double spray gun air inlet pressure
Add noozle diameter to Ref. (**)

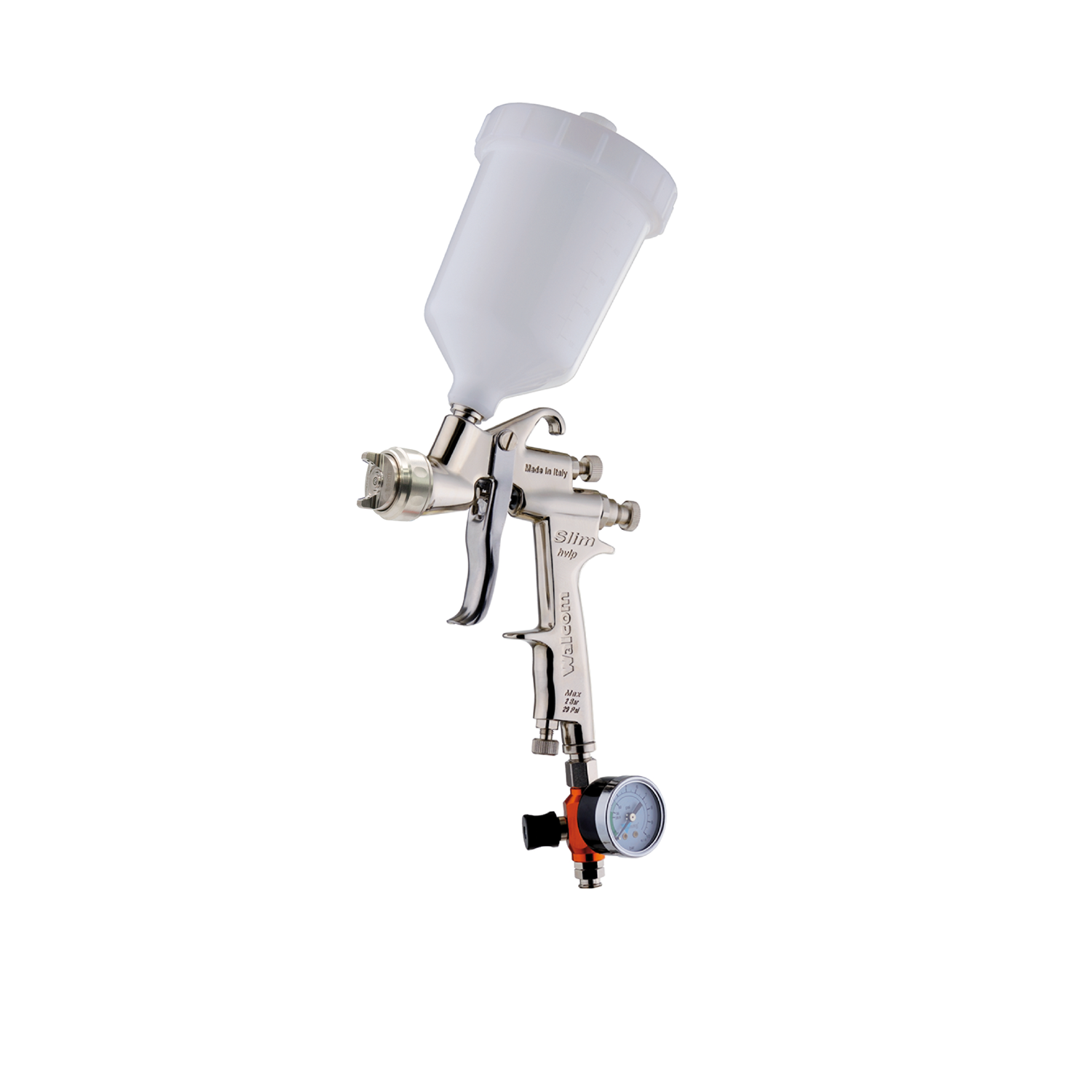

Slim S HVLP - POM C 680 cc with regulator
Ref.
10060**
Tank
POM C 680 cc
Body
Chemical nickel-plated polished aluminium
Cap
Chemical nickel-plated brass
Nozzle
AISI 303 stainless steel
Needle-spring
Stainless steel
Seal gaskets
Self-lubricating and adjustable PTFE (Teflon)
Weight
535 g
Working pressure
2.0 bar
Air consumption
230 l/min
Nozzle diameters
1.3 - 1.5 - 1.7 - 1.9 - 2.2
Regulator
Air inlet pressure regulator with pressure gauge
Add noozle diameter to Ref. (**)

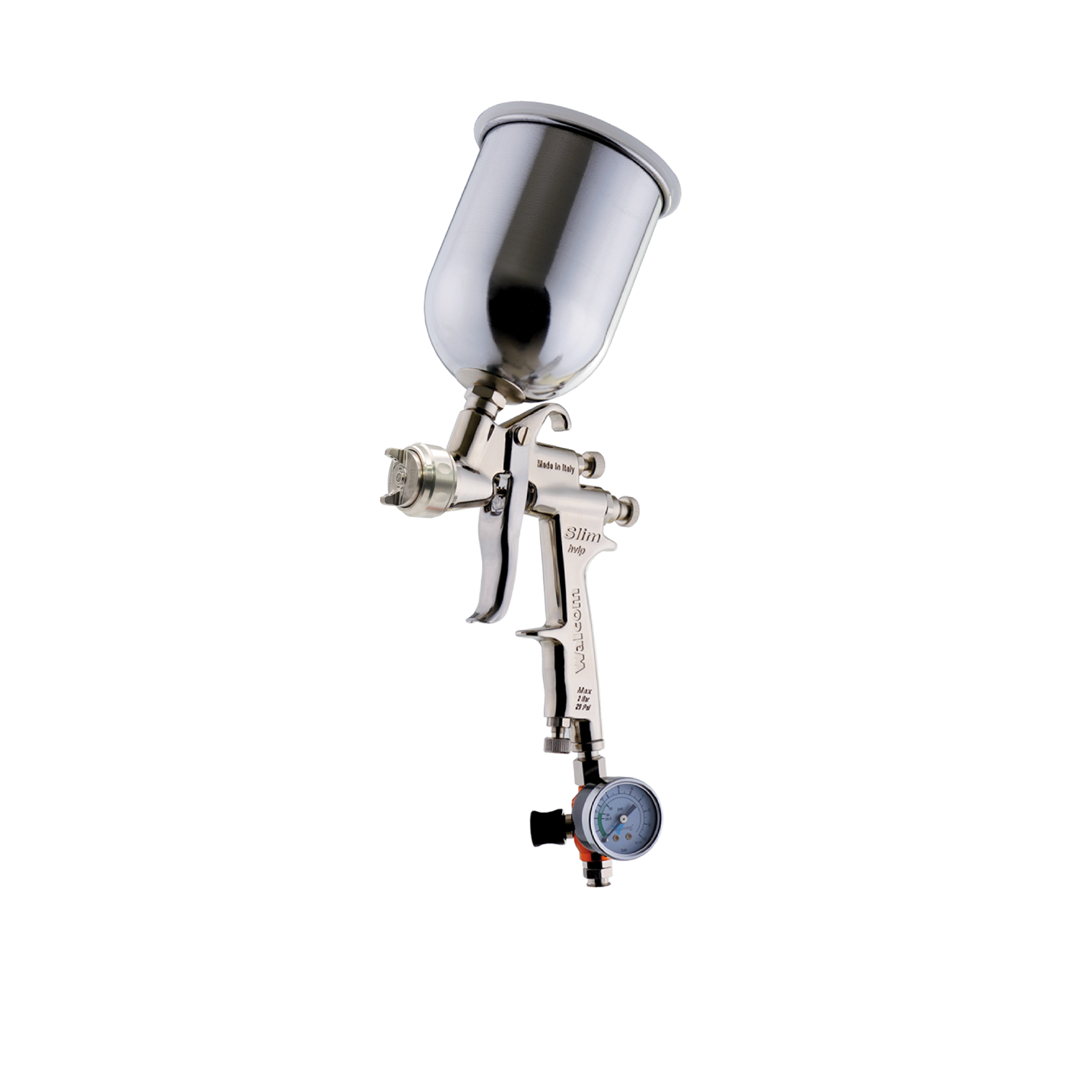

Slim S HVLP - Aluminium 750 cc with regulator
Ref.
10061**
Tank
Aluminium 750 cc
Body
Chemical nickel-plated polished aluminium
Cap
Chemical nickel-plated brass
Nozzle
AISI 303 stainless steel
Needle-spring
Stainless steel
Seal gaskets
Self-lubricating and adjustable PTFE (Teflon)
Weight
535 g
Working pressure
2.0 bar
Air consumption
230 l/min
Nozzle diameters
1.3 - 1.5 - 1.7 - 1.9 - 2.2
Regulator
Air inlet pressure regulator with pressure gauge
Add noozle diameter to Ref. (**)
Slim I HVLP
Ref.
10070**
Tank
Bayonet suction cup aluminium 1000 cc
Body
Chemical nickel-plated polished aluminium
Cap
Chemical nickel-plated brass
Nozzle
AISI 303 stainless steel
Needle-spring
Stainless steel
Seal gaskets
Self-lubricating and adjustable PTFE (Teflon)
Weight
544 g
Working pressure
2.0 bar
Air consumption
230 l/min
Nozzle diameters
1.7 - 1.9 - 2.2
Regulator
Air inlet pressure regulator with pressure gauge
Add noozle diameter to Ref. (**)

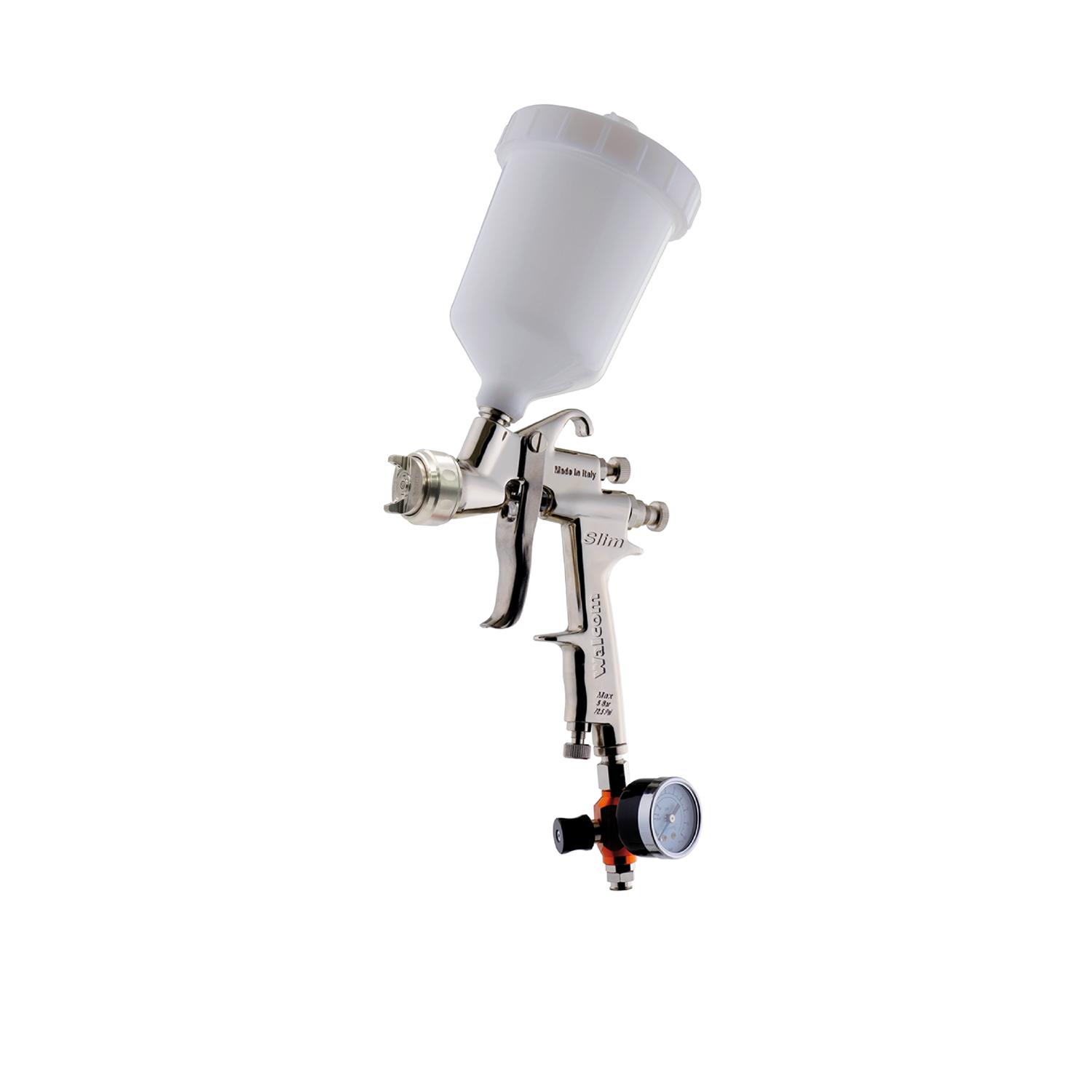

Slim S HTE - POM C 680 cc with regulator
Ref.
10068**
Tank
POM C 680 cc
Body
Chemical nickel-plated polished aluminium
Cap
Chemical nickel-plated brass
Nozzle
AISI 303 stainless steel
Needle-spring
Stainless steel
Seal gaskets
Self-lubricating and adjustable PTFE (Teflon)
Weight
535 g
Working pressure
2.0 - 2.5 bar
Air consumption
220 - 260 l/min
Nozzle diameters
1.0 - 1.2 - 1.3 - 1.5 - 1.7 - 1.9 - 2.2 - 2.5
Regulator
Air inlet pressure regulator with pressure gauge
Add noozle diameter to Ref. (**)

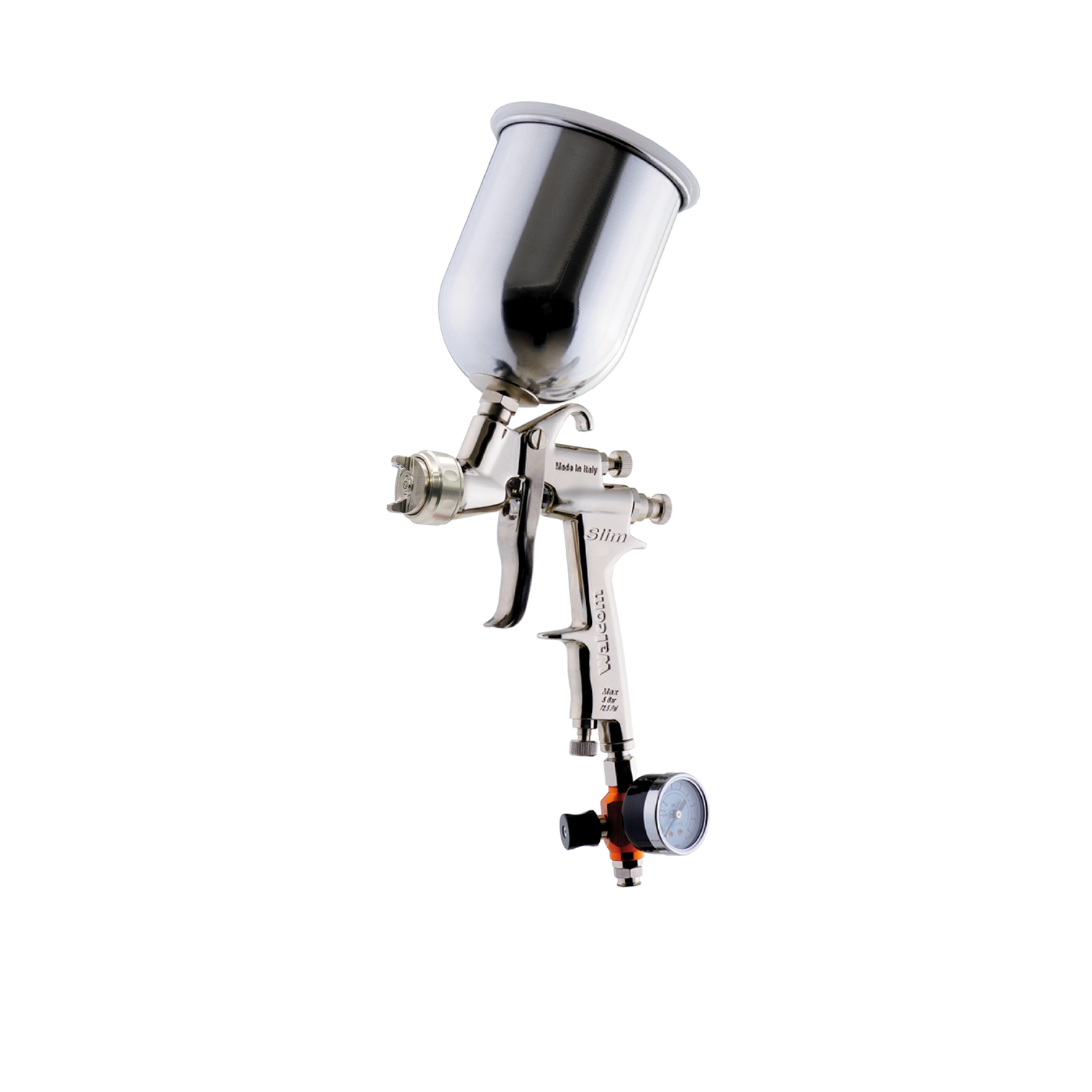

Slim S HTE - Aluminium 750 cc with regulator
Ref.
10069**
Tank
Aluminium 750 cc
Body
Chemical nickel-plated polished aluminium
Cap
Chemical nickel-plated brass
Nozzle
AISI 303 stainless steel
Needle-spring
Stainless steel
Seal gaskets
Self-lubricating and adjustable PTFE (Teflon)
Weight
535 g
Working pressure
2.0 - 2.5 bar
Air consumption
220 - 260 l/min
Nozzle diameters
1.0 - 1.2 - 1.3 - 1.5 - 1.7 - 1.9 - 2.2 - 2.5
Regulator
Air inlet pressure regulator with pressure gauge
Add noozle diameter to Ref. (**)

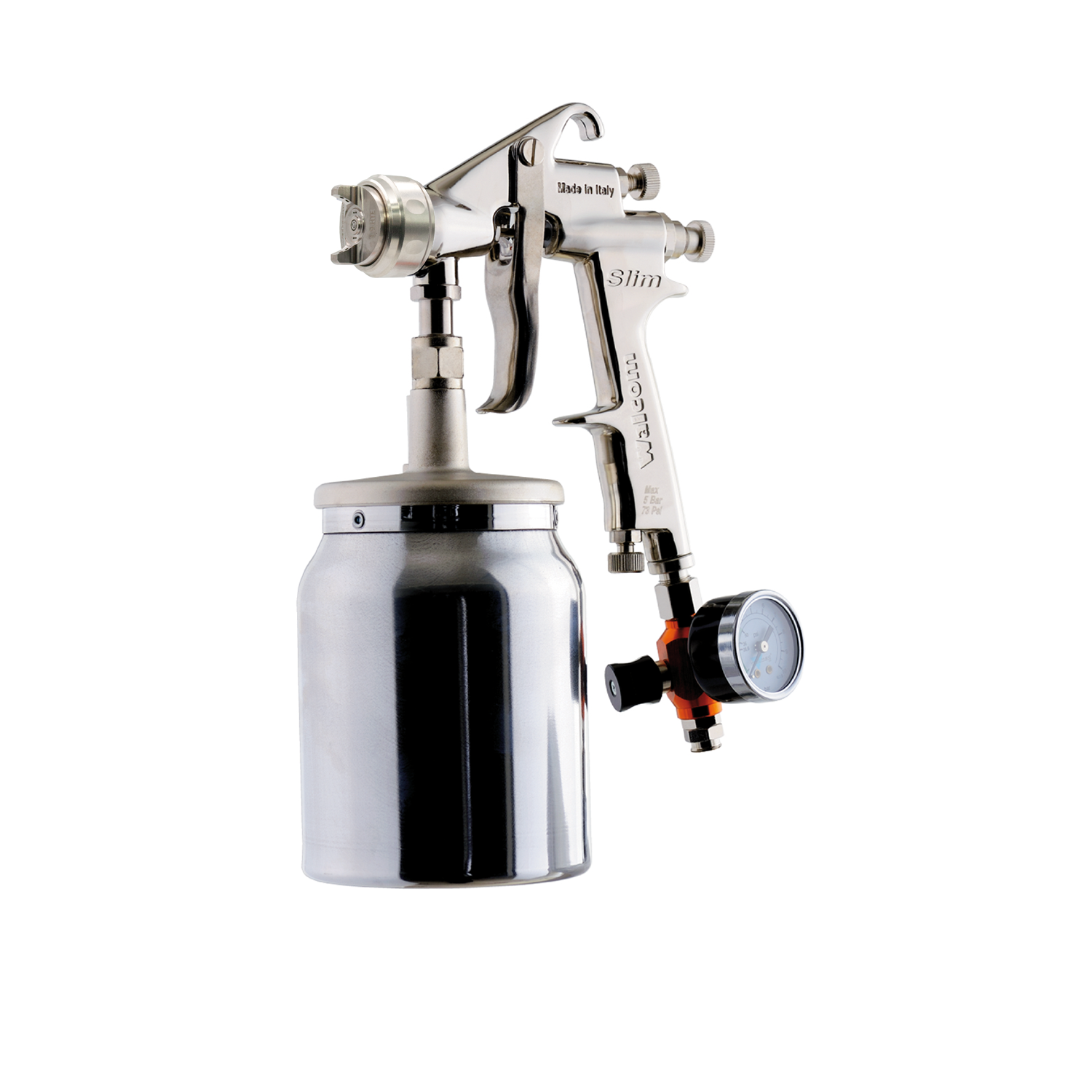

Slim I HTE
Ref.
10077**
Tank
Bayonet suction cup aluminium 1000 cc
Body
Chemical nickel-plated polished aluminium
Cap
Chemical nickel-plated brass
Nozzle
AISI 303 stainless steel
Needle-spring
Stainless steel
Seal gaskets
Self-lubricating and adjustable PTFE (Teflon)
Weight
544 g
Working pressure
2.0 - 2.5 bar
Air consumption
220 - 260 l/min
Nozzle diameters
1.0 - 1.2 - 1.3 - 1.5 - 1.7 - 1.9 - 2.2 - 2.5
Regulator
Air inlet pressure regulator with pressure gauge
Add noozle diameter to Ref. (**)

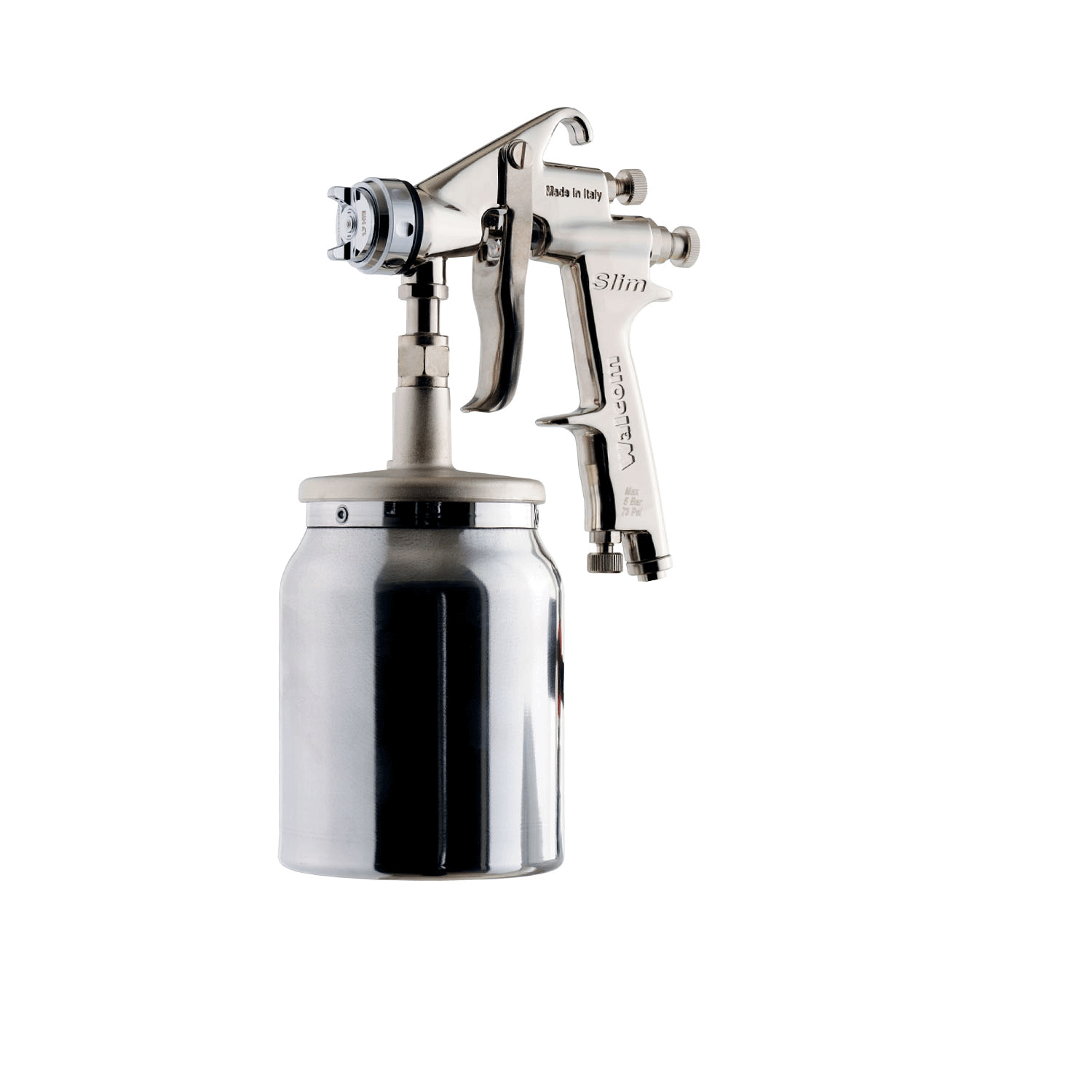

Slim I HTE SR
Ref.
10088**
Tank
Bayonet suction cup aluminium 1000 cc
Body
Chemical nickel-plated polished aluminium
Cap
Chemical nickel-plated brass
Nozzle
AISI 303 stainless steel
Needle-spring
Stainless steel
Seal gaskets
Self-lubricating and adjustable PTFE (Teflon)
Weight
544 g
Working pressure
2.0 - 2.5 bar
Air consumption
220 - 260 l/min
Nozzle diameters
1.0 - 1.2 - 1.3 - 1.5 - 1.7 - 1.9 - 2.2 - 2.5
Add noozle diameter to Ref. (**)

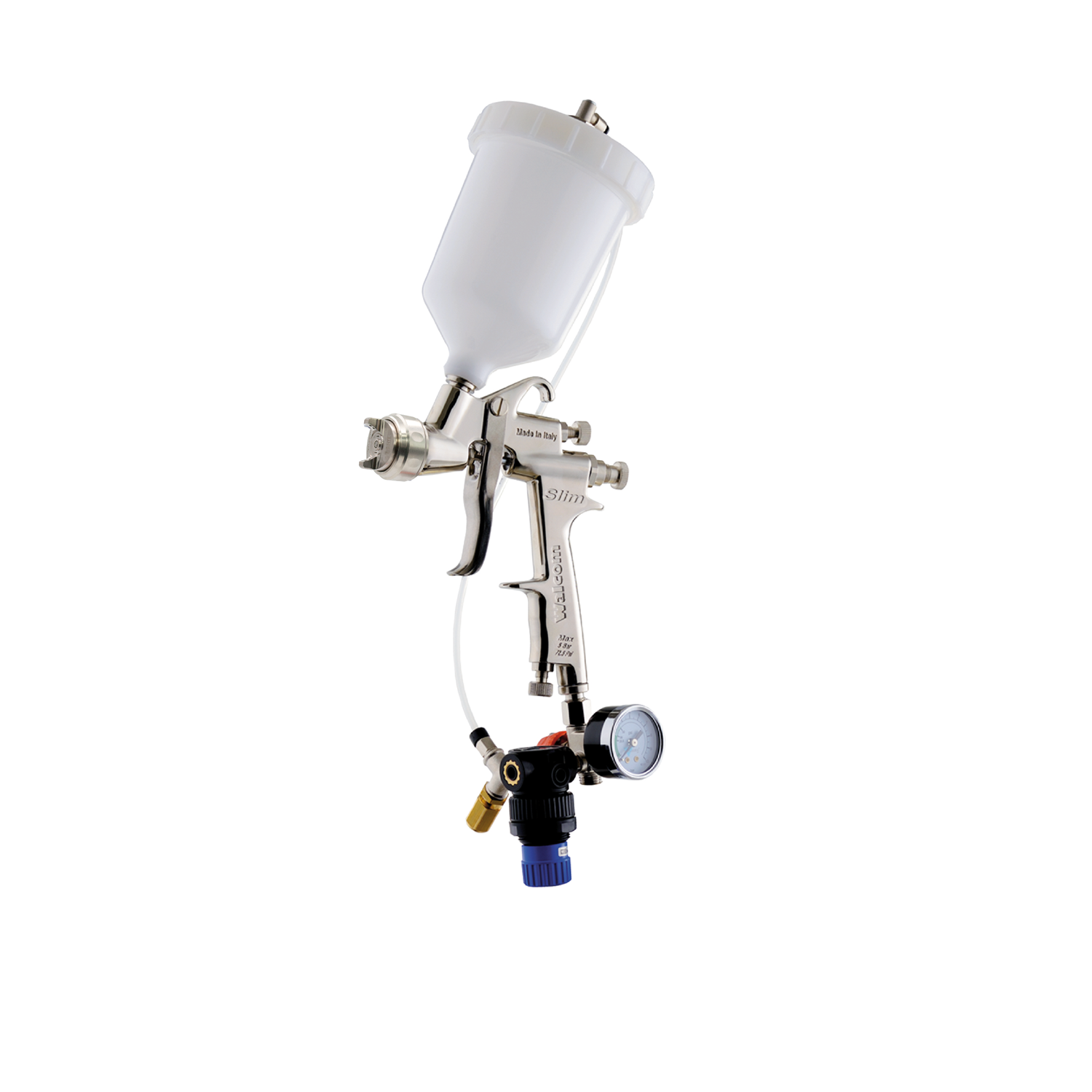

Slim HTE HD
Ref.
10080**
Pressurized gravity cup
Product inlet M 1/4"
Body
Chemical nickel-plated polished aluminium
Cap
Chemical nickel-plated brass
Nozzle
AISI 303 stainless steel
Needle-spring
Stainless steel
Seal gaskets
Self-lubricating and adjustable PTFE (Teflon)
Weight
535 g
Working pressure
2.0 - 2.5 bar
Air consumption
240 - 280 l/min
Nozzle diameters
1.3 - 1.5 - 1.7 - 1.9 - 2.2
Regulator
Double spray gun air inlet pressure
Add noozle diameter to Ref. (**)

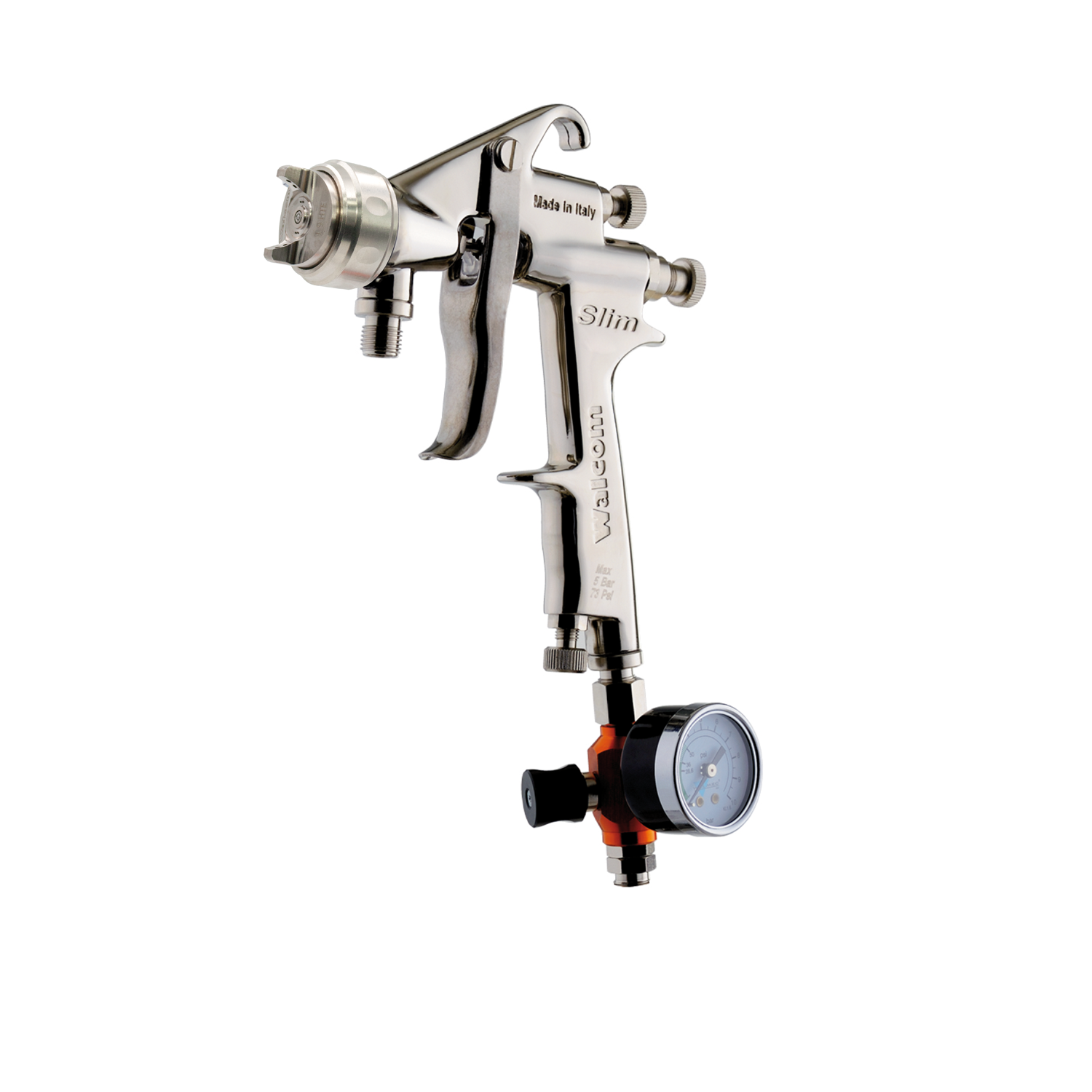

Slim SP HTE
Ref.
10078**
Pressurized containers
Product inlet M 1/4
Body
Chemical nickel-plated polished aluminium
Cap
Chemical nickel-plated brass
Nozzle
AISI 303 stainless steel
Needle-spring
Stainless steel
Seal gaskets
Self-lubricating and adjustable PTFE (Teflon)
Weight
544 g
Working pressure
2.0 - 2.5 bar
Air consumption
220 - 260 l/min
Nozzle diameters
1.0 - 1.2 - 1.3 - 1.5 - 1.7 - 1.9 - 2.2
Regulator
Air inlet pressure regulator with pressure gauge
Add noozle diameter to Ref. (**)

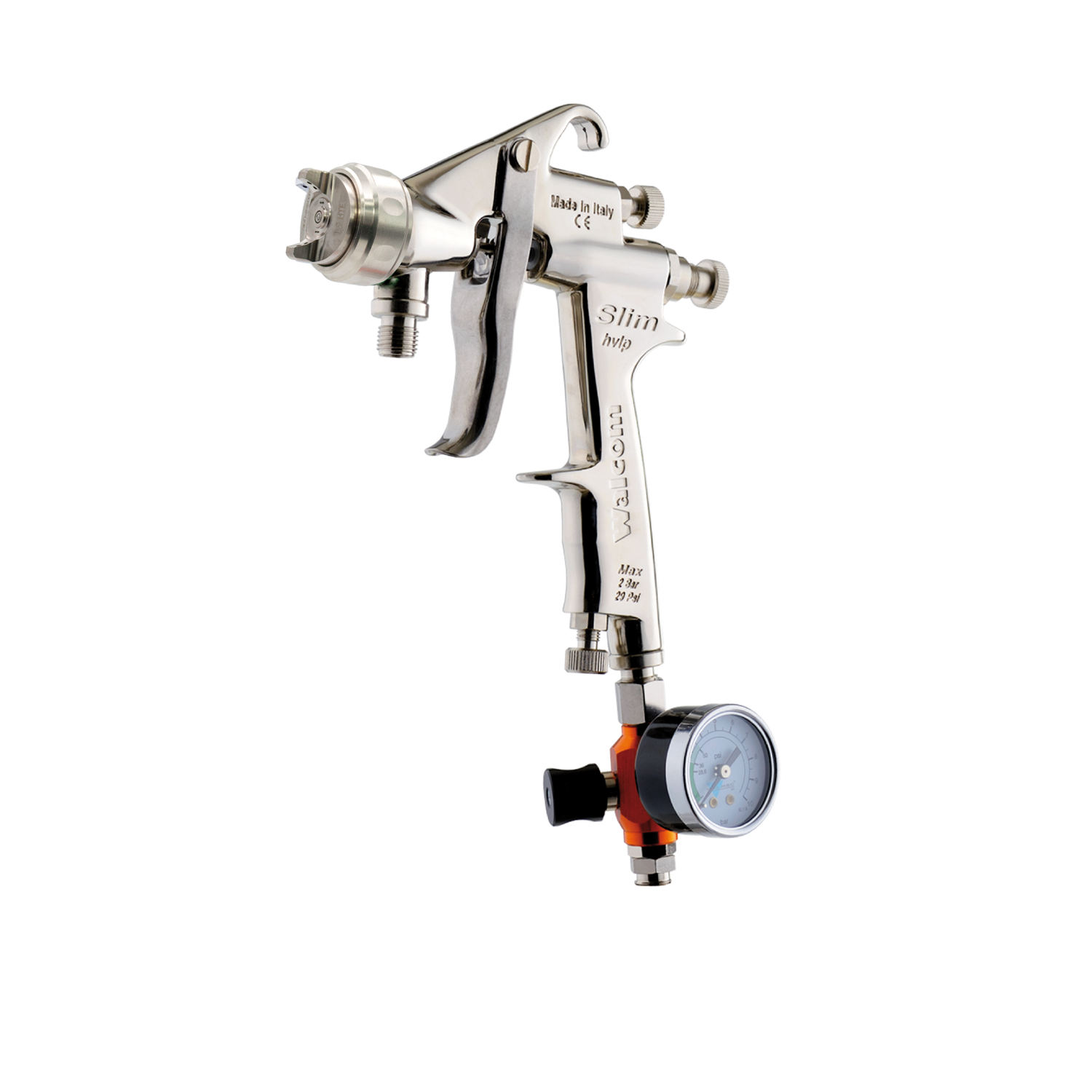

Slim SP HVLP
Ref.
10071**
Pressurized containers
Product inlet M 1/4
Body
Chemical nickel-plated polished aluminium
Cap
Chemical nickel-plated brass
Nozzle
AISI 303 stainless steel
Needle-spring
Stainless steel
Seal gaskets
Self-lubricating and adjustable PTFE (Teflon)
Weight
544 g
Working pressure
2.0 bar
Air consumption
230 l/min
Nozzle diameters
1.0 - 1.3 - 1.5 - 1.7 - 1.9 - 2.2
Regulator
Air inlet pressure regulator with pressure gauge
Add noozle diameter to Ref. (**)

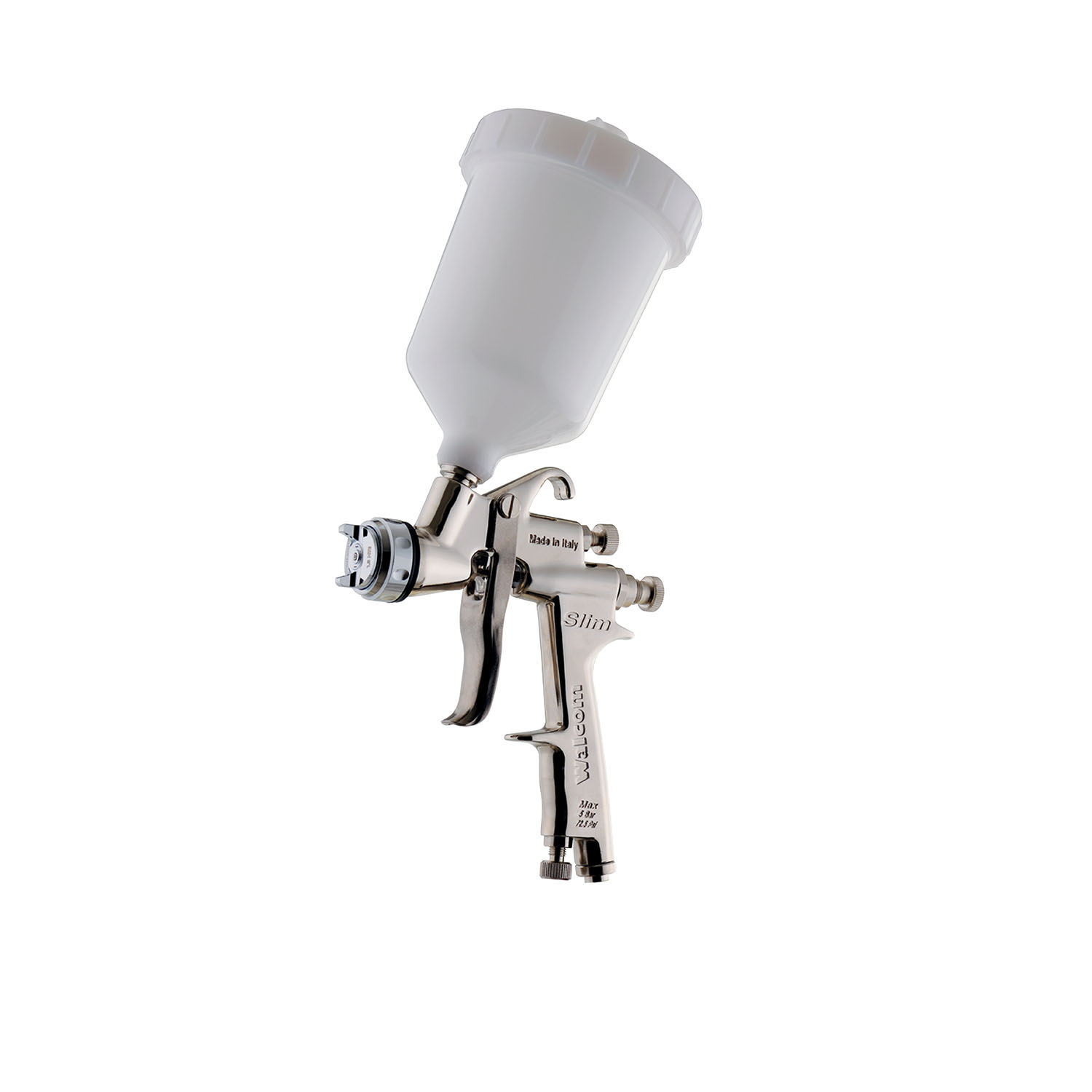

Slim S HTE SR - POM C 680 cc
Ref.
10083**
Tank
POM C 680 cc
Body
Chemical nickel-plated polished aluminium
Cap
Chemical nickel-plated brass
Nozzle
AISI 303 stainless steel
Needle-spring
Stainless steel
Seal gaskets
Self-lubricating and adjustable PTFE (Teflon)
Weight
535 g
Working pressure
2.0 - 2.5 bar
Air consumption
220 - 260 l/min
Nozzle diameters
1.0 - 1.2 - 1.3 - 1.5 - 1.7 - 1.9 - 2.2 - 2.5
Add noozle diameter to Ref. (**)

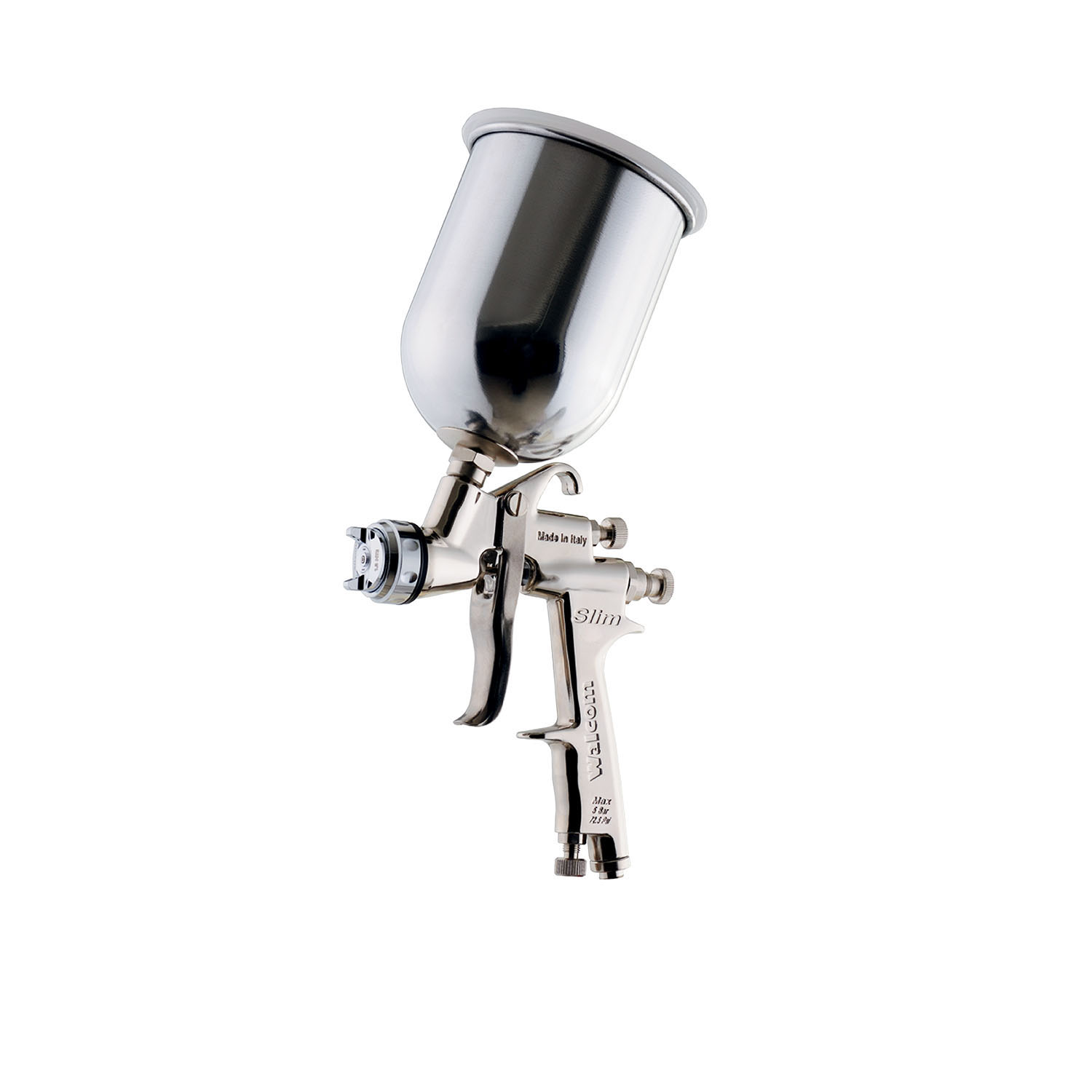

Slim S HTE SR - Aluminium 750 cc
Ref.
10084**
Tank
Aluminium 750 cc
Body
Chemical nickel-plated polished aluminium
Cap
Chemical nickel-plated brass
Nozzle
AISI 303 stainless steel
Needle-spring
Stainless steel
Seal gaskets
Self-lubricating and adjustable PTFE (Teflon)
Weight
535 g
Working pressure
2.0 - 2.5 bar
Air consumption
220 - 260 l/min
Nozzle diameters
1.0 - 1.2 - 1.3 - 1.5 - 1.7 - 1.9 - 2.2 - 2.5
Add noozle diameter to Ref. (**)

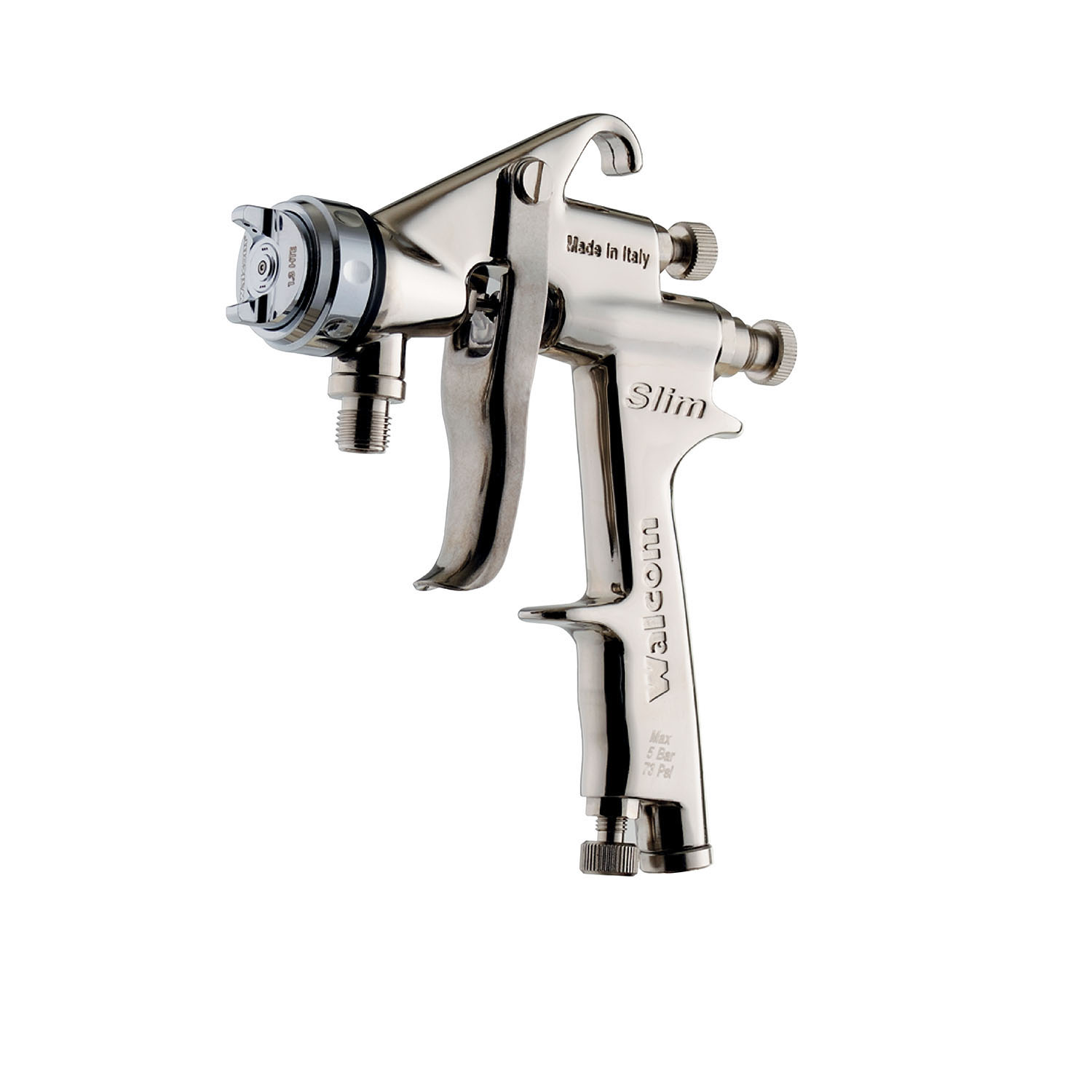

Slim SP HTE SR
Ref.
10089**
Pressurized containers
Product inlet M 1/4
Body
Chemical nickel-plated polished aluminium
Cap
Chemical nickel-plated brass
Nozzle
AISI 303 stainless steel
Needle-spring
Stainless steel
Seal gaskets
Self-lubricating and adjustable PTFE (Teflon)
Weight
544 g
Working pressure
2.0 - 2.5 bar
Air consumption
220 - 260 l/min
Nozzle diameters
1.0 - 1.2 - 1.3 - 1.5 - 1.7 - 1.9 - 2.2
Add noozle diameter to Ref. (**)

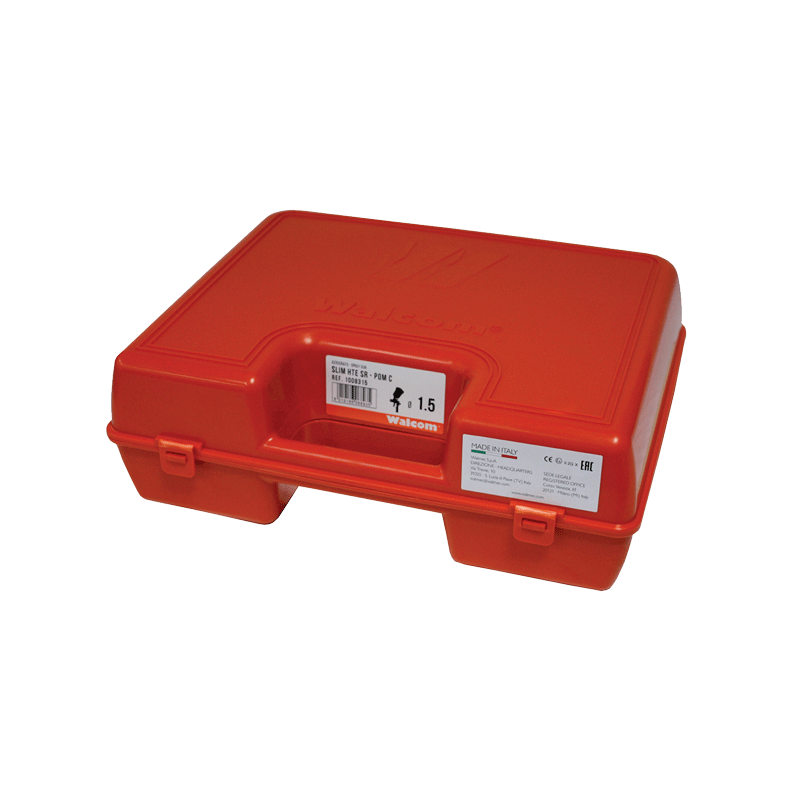

packaging

All spray guns of the Walcom® range are supplied in easy to use rigid plastic cases containing all the accessories for a proper cleaning and maintenance of the product.
