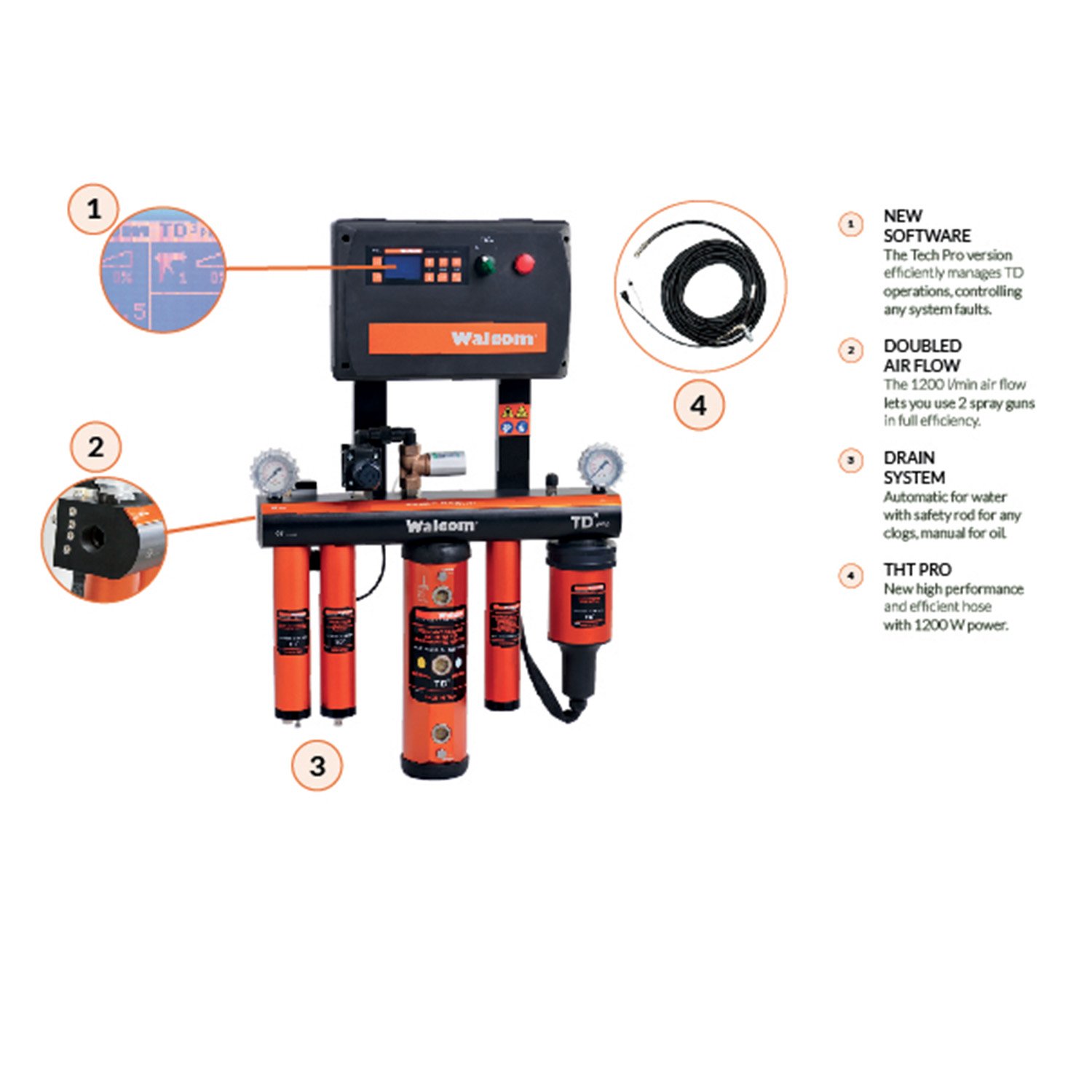

TD3 Pro

Cabin booth integrated air conditioning and thermoregulation system
Central Body
Anodised aluminium

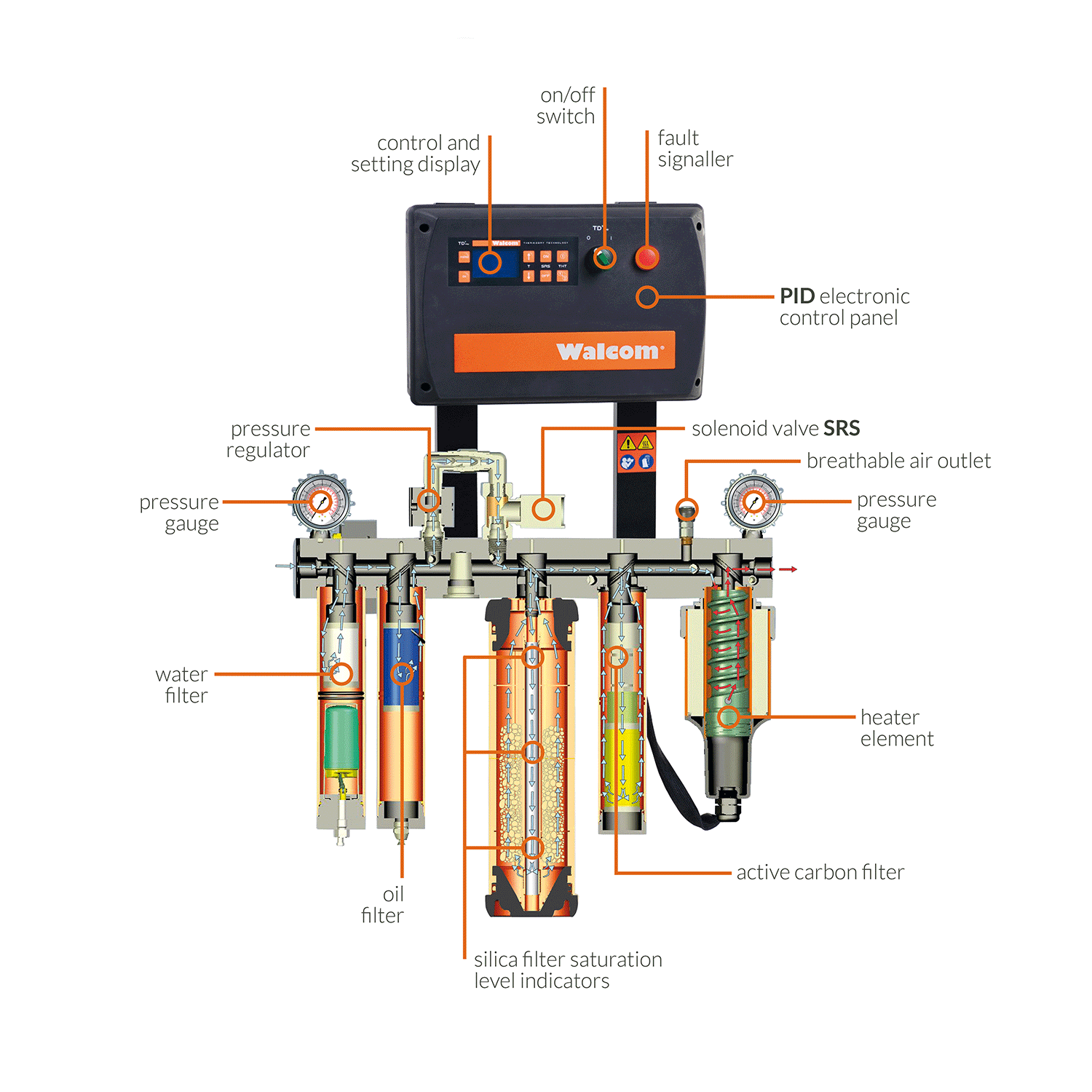

1) Synthetic fibre pre-filtering element that eliminates condensation. Automatic drain with safety rod for manual drain.
2) De-greaser filter to eliminate residual pollutants. Manual drain.
3) Drying group with silica gel that reduces residual humidity in compressed air. Possibility or silica gel regeneration with TD3 Pro hot air flow SRS valve. Silica gel lasts max 1 year.
4) Active carbon filter to eliminate all impurities and obtain breathable air. Max oil residue < 0.0003 mg/m^3
5) Heating elemenent with 1200 W power controlled by an electronic unit with PID retroactive system and SCR heating power regulation.
Pressure regulator
Membrane regulation and automatic decompression
Air inlet
F 1/2
Air outlet
F 1/2
Filtering Power
Air 5µ - oil 0.01µ
Working pressure
12 bar
Air consumption
1200 l/min to 6 bar
21 Kg
Combatible tube
ThT (12 m) - Ref.60161
ThT (17 m) - Ref.60163
ThT (22 m) - Ref.60162
** Ref./T = with 1 remote control
