Genesi Carbonio 360 GEO
Ideal for waterborne base and solvent
One of the masterpiece of the Walcom® brand, the GEO dual atomization system, hvlp in respect to the California norm n. 1151 SCAQMD with 0,7 bar at the aircap and more then 65% transfer efficiency, perfect for color match. The dual atomizing nozzle, 6 pre-atomizing holes, excellent product lay out, unique system that delivers incredible performance. It’ s very low in air consumption 425 l/min, saving air and consequently energy.
discover all the Genesi Carbonio 360 GEO serie

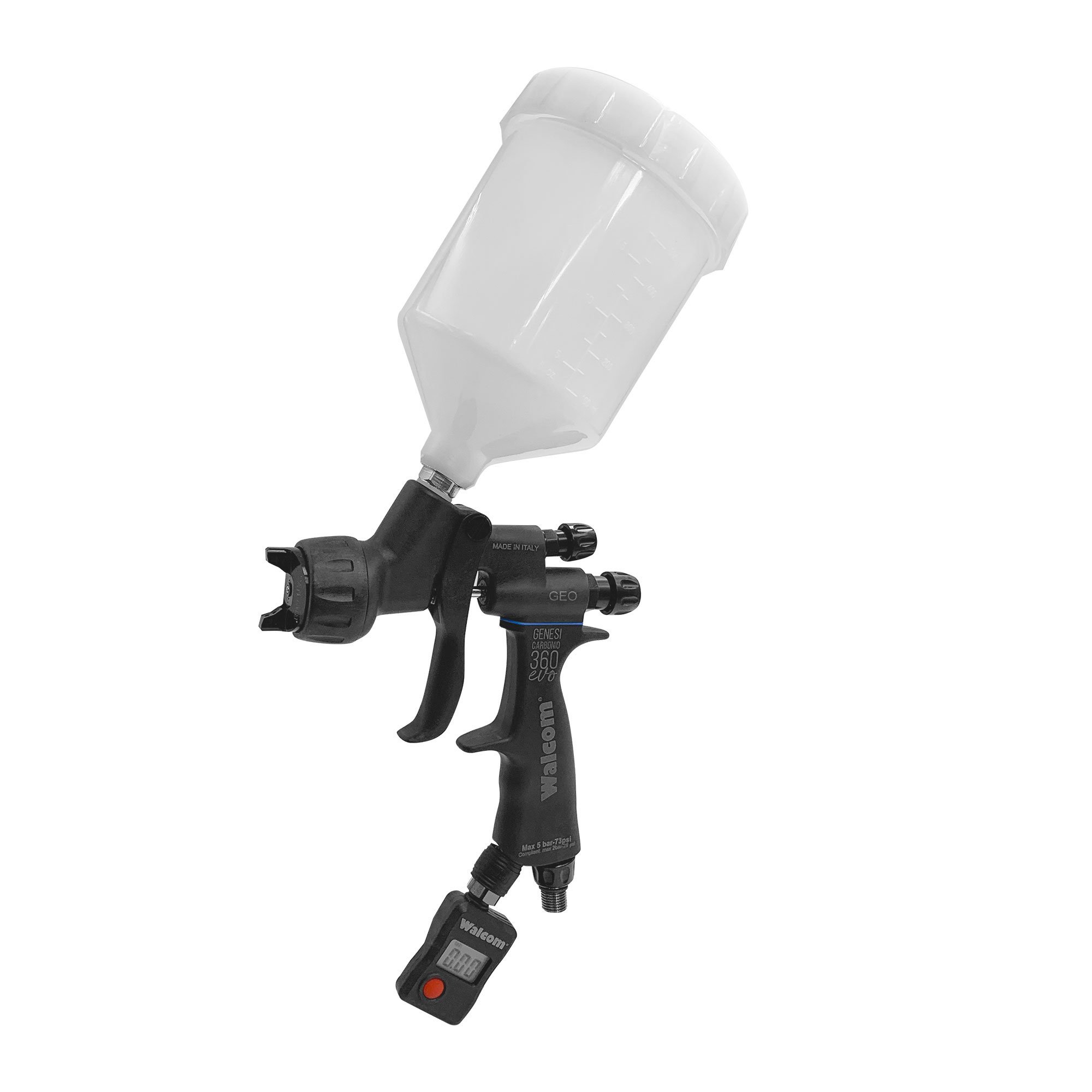

- Ref.
- 9930**
- Cup
- POM C 680 cc
- Body
- Forged aluminum and carbon fiber
- Handle/Trigger
- Carbon fiber
- Aircap HP
- Chemically nickeled plated brass
- Air cap ring
- Carbon fiber
- Needle/Spring/Noozle
- Stainless stell AISI 303
- Seals
- PTFE (teflon) self and adjsuting and manual regulation
- Weight
- 360 g
- Operating air pressure
- 2.0 bar
- Air consumption
- 425 l/min
- Nozzle diameters
- 1.0 - 1.2 - 1.3 - 1.4 - 1.5 - 1.7 - 1.9
- Regulator
- Digital pressure gauge and air control regulator with quick connection sytem, made of carbon fiber. 30° articulated fiing.
- Add noozle diameter to Ref. (**)

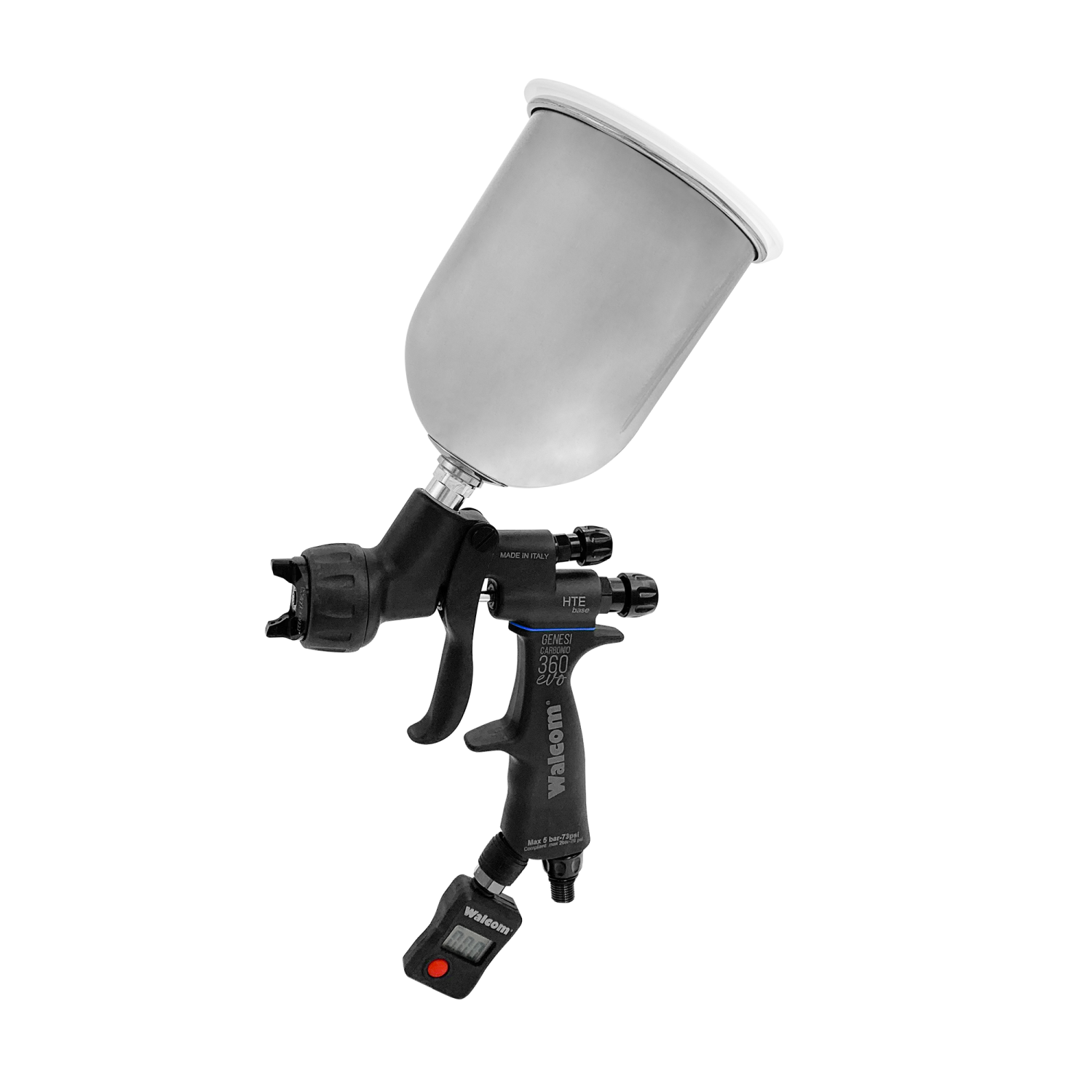

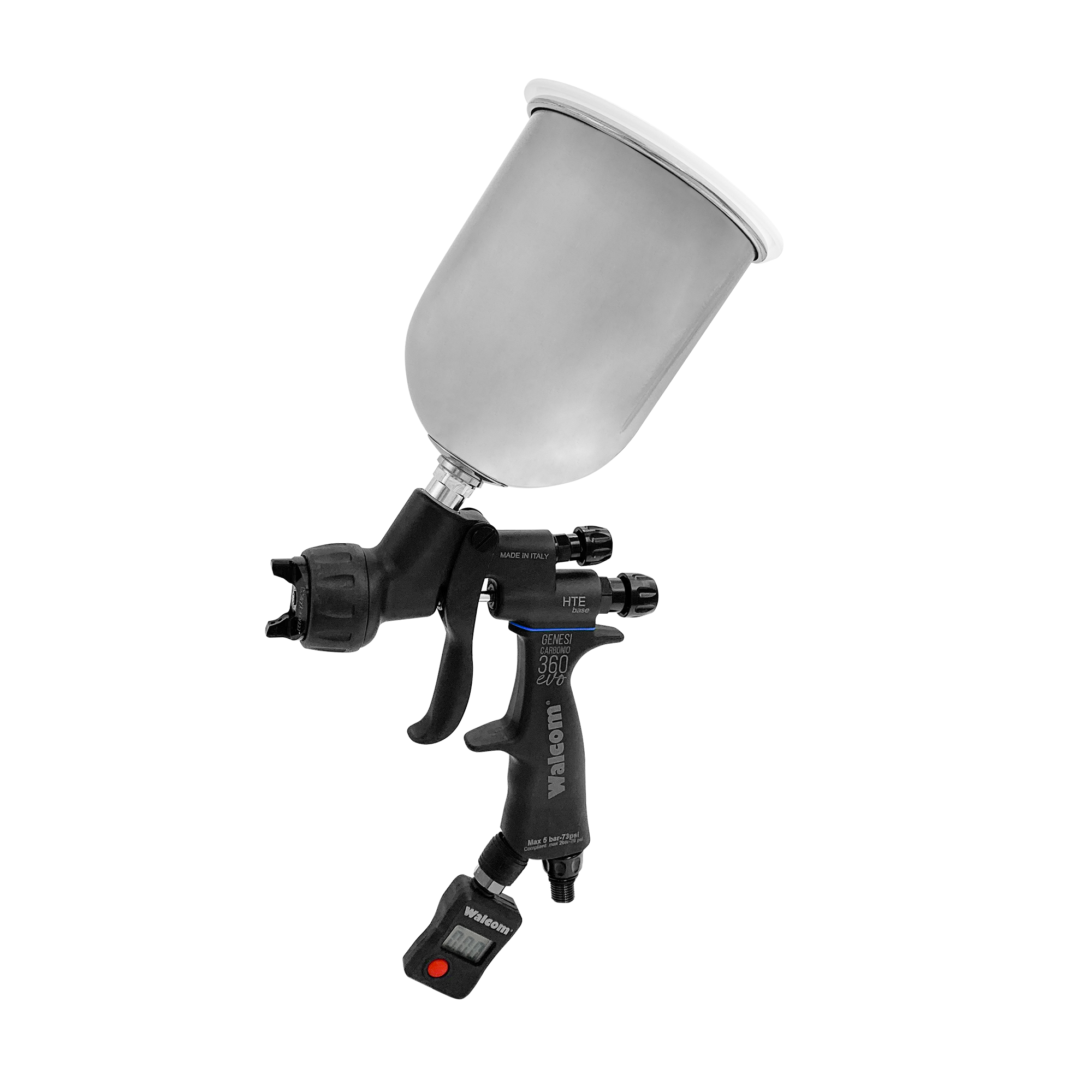

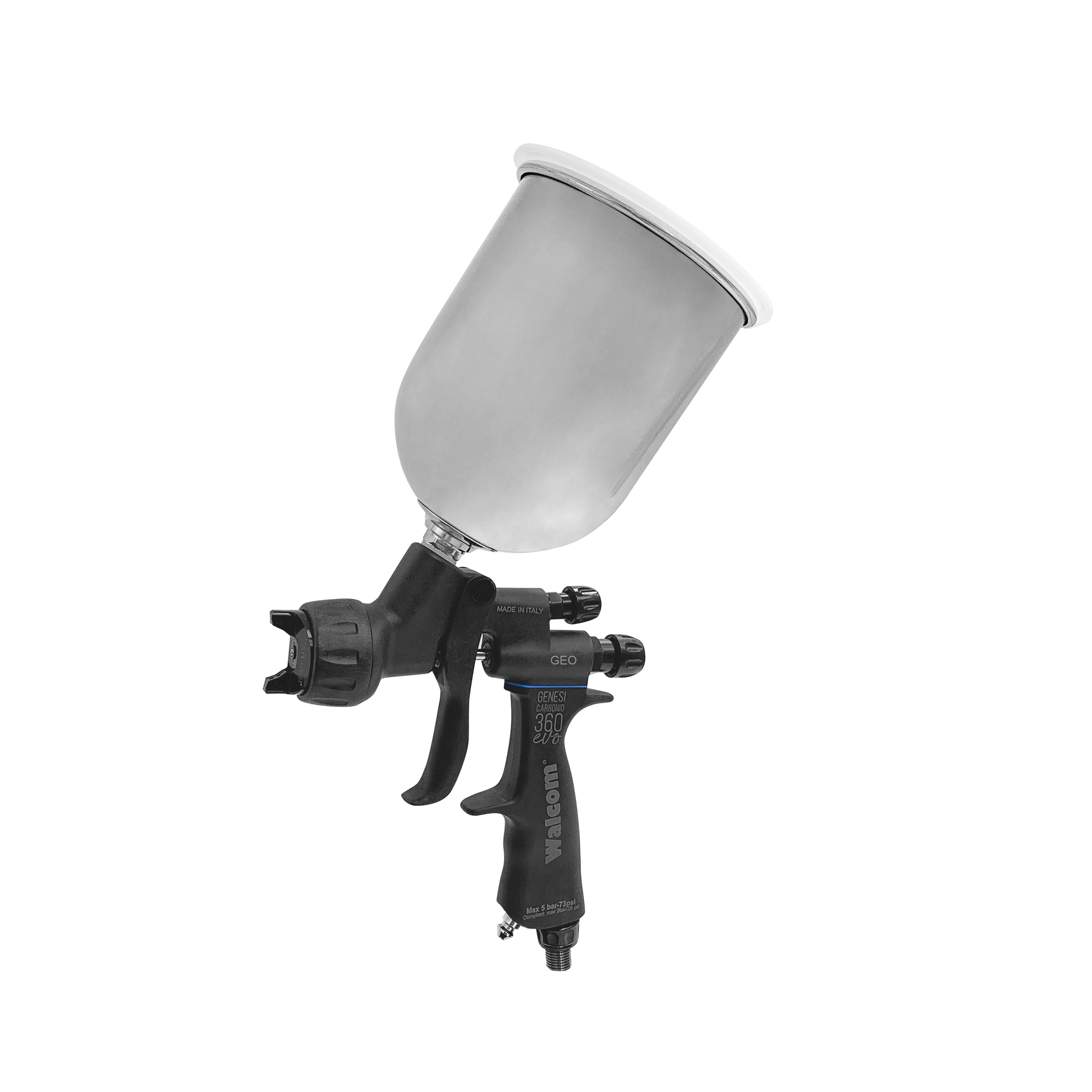

- Ref.
- 9935**
- Cup
- Aluminium 750 cc
- Body
- Forged aluminum and carbon fiber
- Handle/Trigger
- Carbon fiber
- Aircap HP
- Chemically nickeled plated brass
- Air cap ring
- Carbon fiber
- Needle/Spring/Noozle
- Stainless stell AISI 303
- Seals
- PTFE (teflon) self and adjsuting and manual regulation
- Weight
- 360 g
- Operating air pressure
- 2.0 bar
- Air consumption
- 425 l/min
- Nozzle diameters
- 1.0 - 1.2 - 1.3 - 1.4 - 1.5 - 1.7 - 1.9
- Regulator
- Digital pressure gauge and air control regulator with quick connection sytem, made of carbon fiber. 30° articulated fiing.
- Add noozle diameter to Ref. (**)

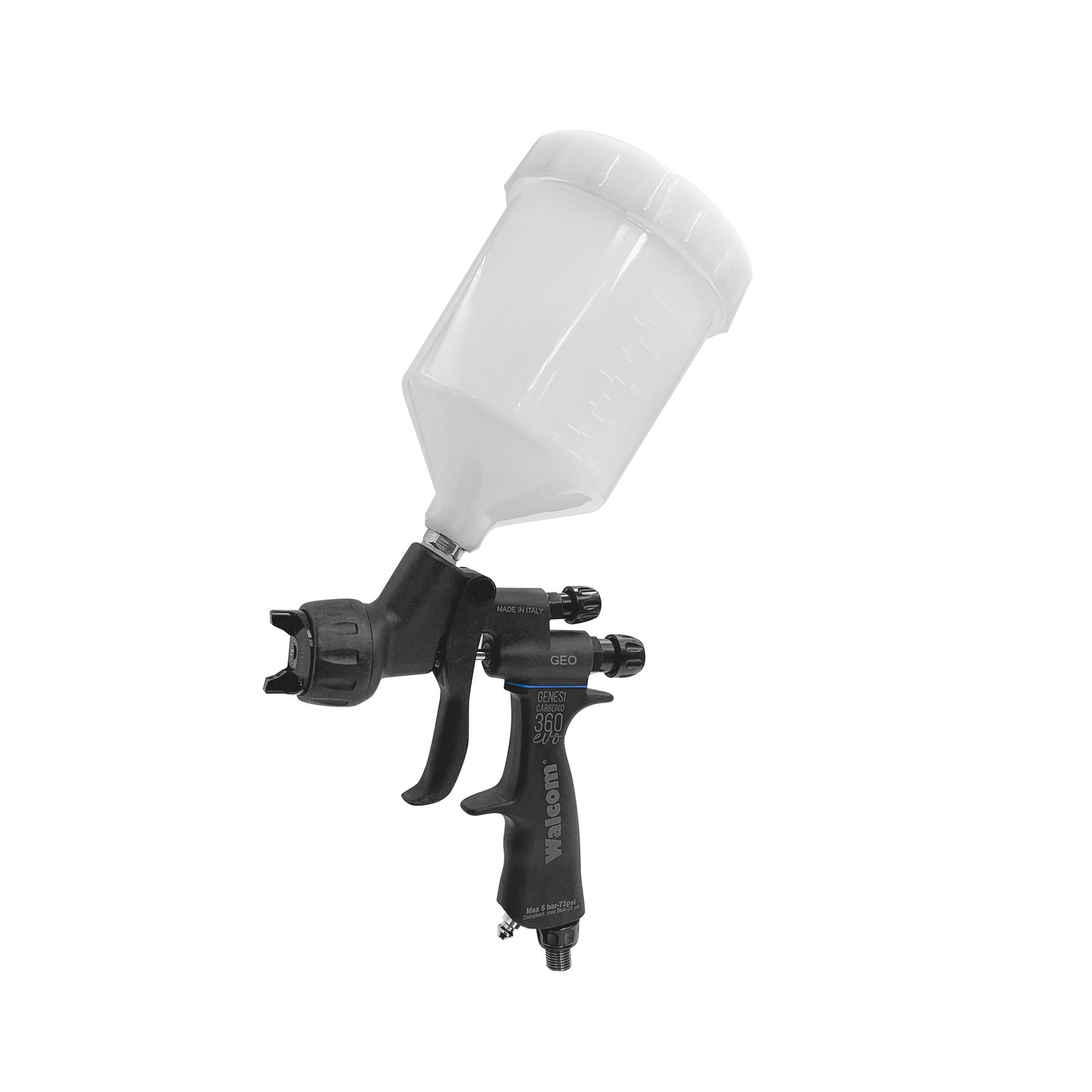

- Ref.
- 9920**
- Cup
- POM C 680 cc
- Body
- Forged aluminum and carbon fiber
- Handle/Trigger
- Carbon fiber
- Aircap HP
- Chemically nickeled plated brass
- Air cap ring
- Carbon fiber
- Needle/Spring/Noozle
- Stainless stell AISI 303
- Seals
- PTFE (teflon) self and adjsuting and manual regulation
- Weight
- 360 g
- Operating air pressure
- 2.0 bar
- Air consumption
- 425 l/min
- Nozzle diameters
- 1.0 - 1.2 - 1.3 - 1.4 - 1.5 - 1.7 - 1.9
- Add noozle diameter to Ref. (**)

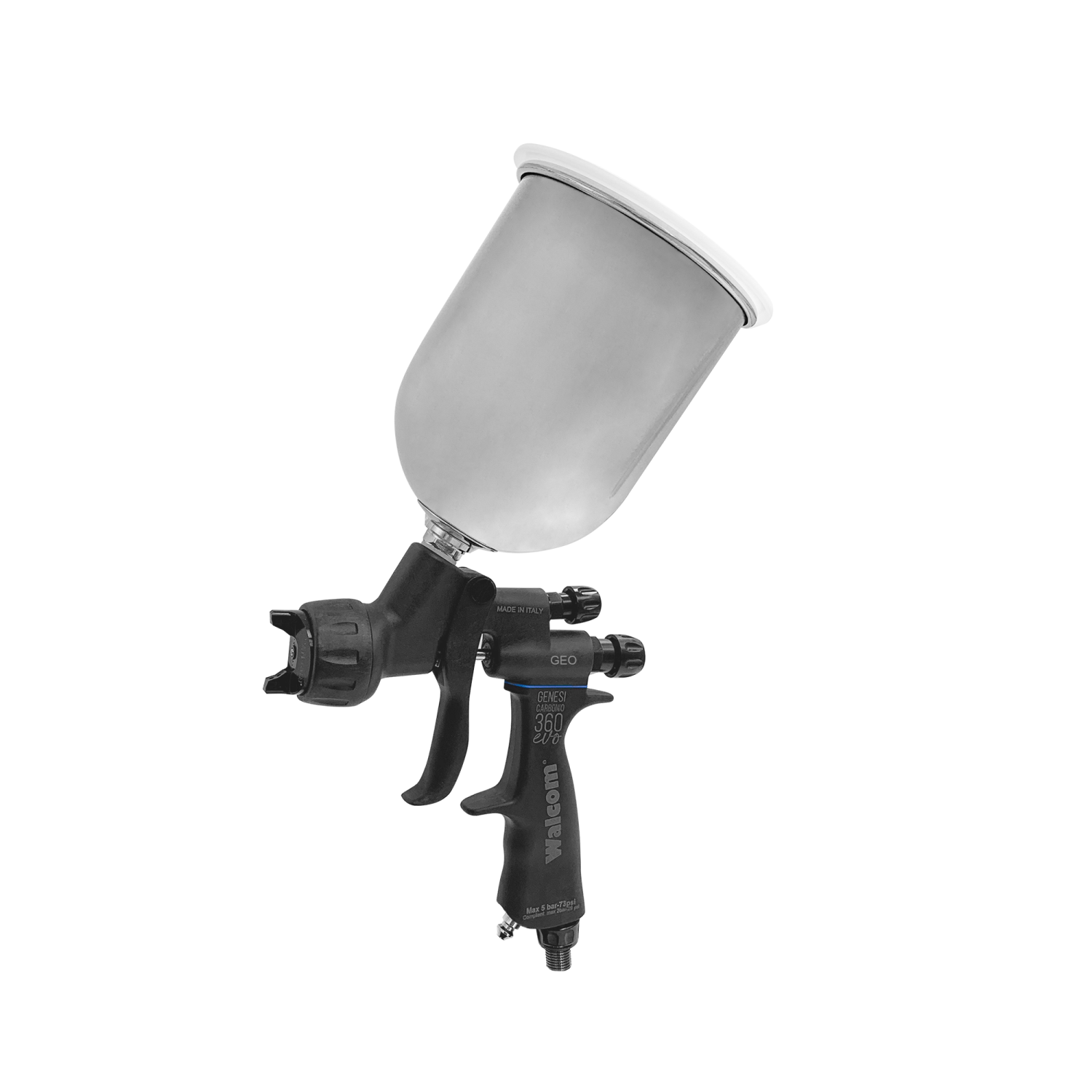

- Ref.
- 9925**
- Cup
- Aluminium 750 cc
- Body
- Forged aluminum and carbon fiber
- Handle/Trigger
- Carbon fiber
- Aircap HP
- Chemically nickeled plated brass
- Air cap ring
- Carbon fiber
- Needle/Spring/Noozle
- Stainless stell AISI 303
- Seals
- PTFE (teflon) self and adjsuting and manual regulation
- Weight
- 360 g
- Operating air pressure
- 2.0 bar
- Air consumption
- 425 l/min
- Nozzle diameters
- 1.0 - 1.2 - 1.3 - 1.4 - 1.5 - 1.7 - 1.9
- Add noozle diameter to Ref. (**)

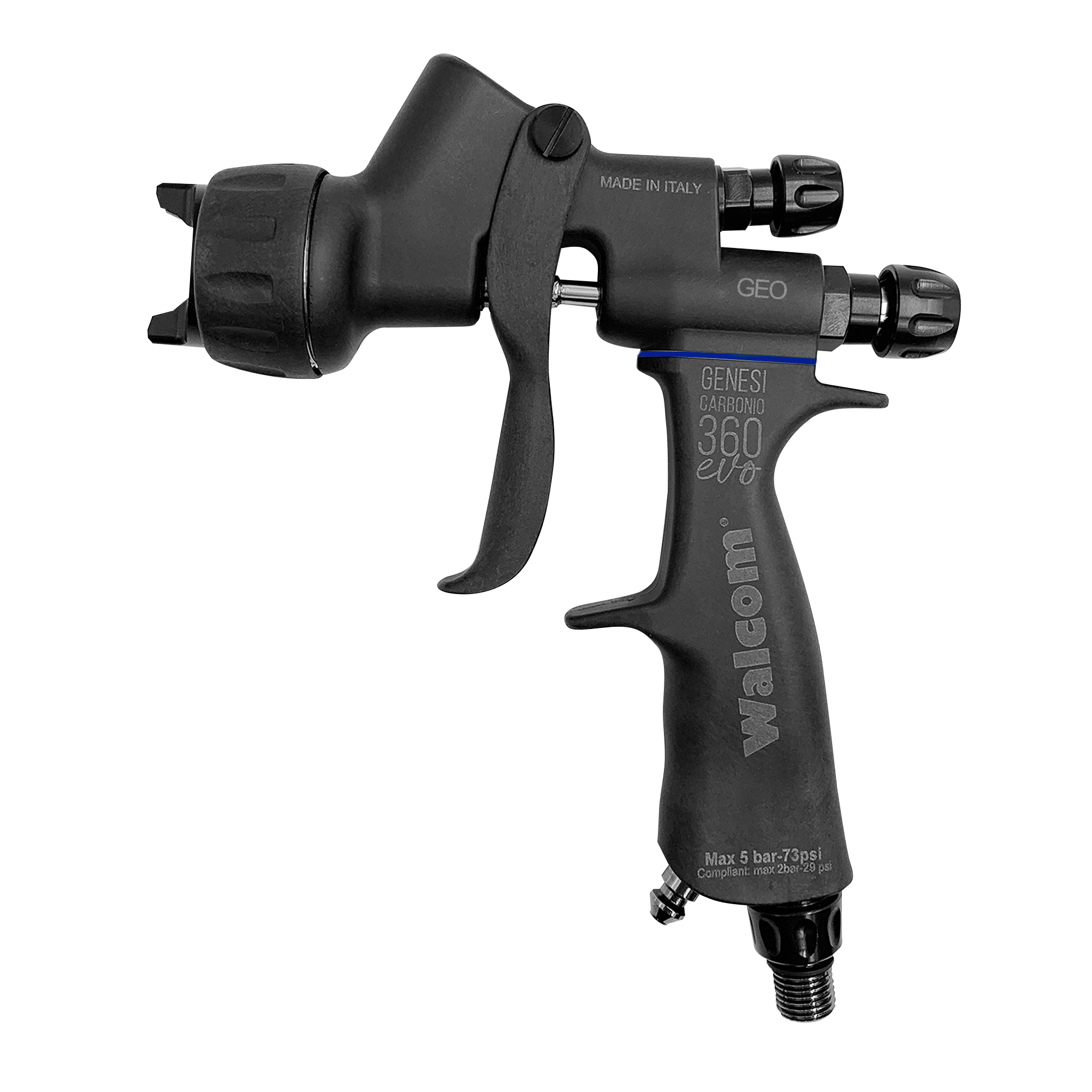

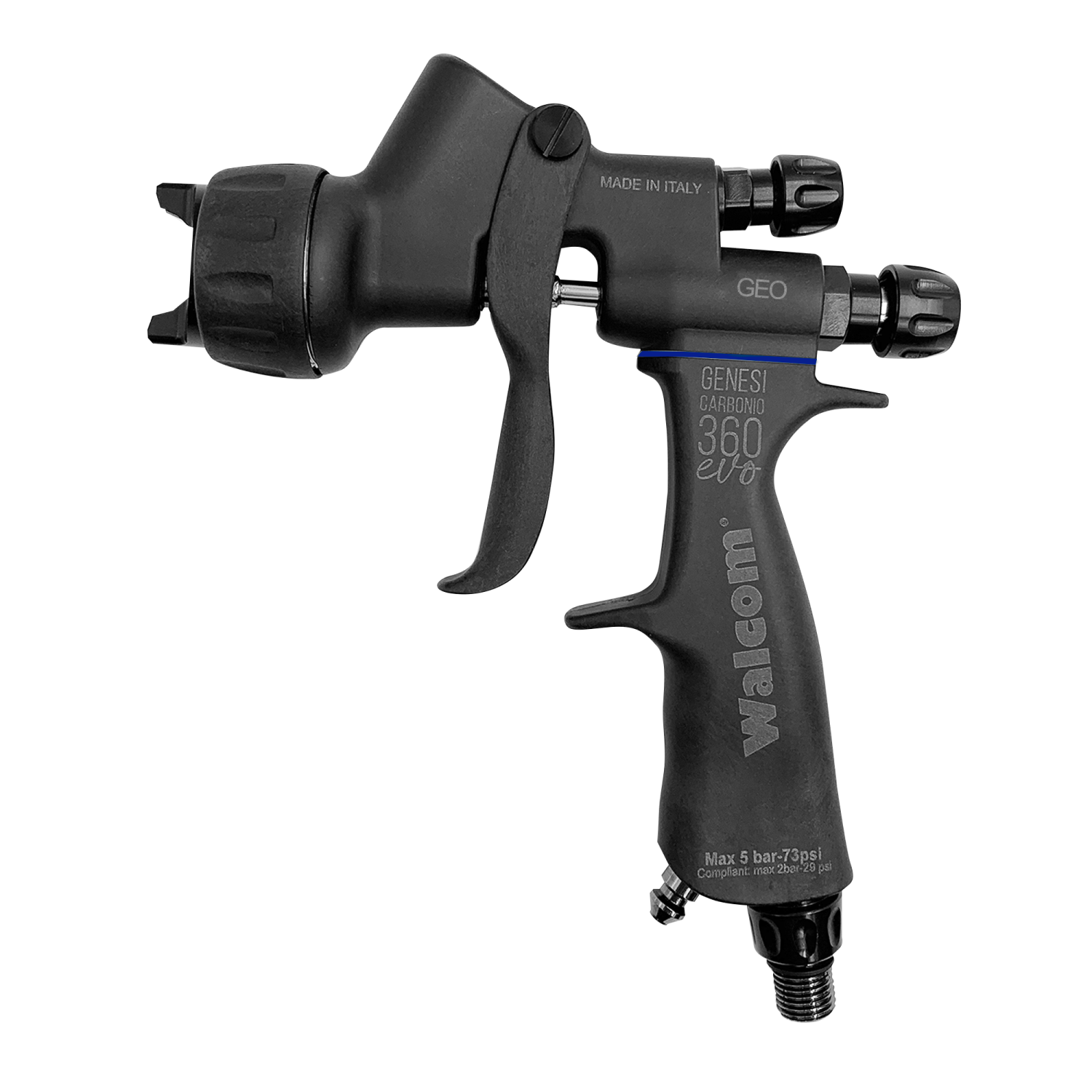

- Ref.
- 9960**
- Body
- Forged aluminum and carbon fiber
- Handle/Trigger
- Carbon fiber
- Aircap HP
- Chemically nickeled plated brass
- Air cap ring
- Carbon fiber
- Needle/Spring/Noozle
- Stainless stell AISI 303
- Seals
- PTFE (teflon) self and adjsuting and manual regulation
- Weight
- 360 g
- Operating air pressure
- 2.0 bar
- Air consumption
- 425 l/min
- Nozzle diameters
- 1.0 - 1.2 - 1.3 - 1.4 - 1.5 - 1.7 - 1.9
- Add noozle diameter to Ref. (**)

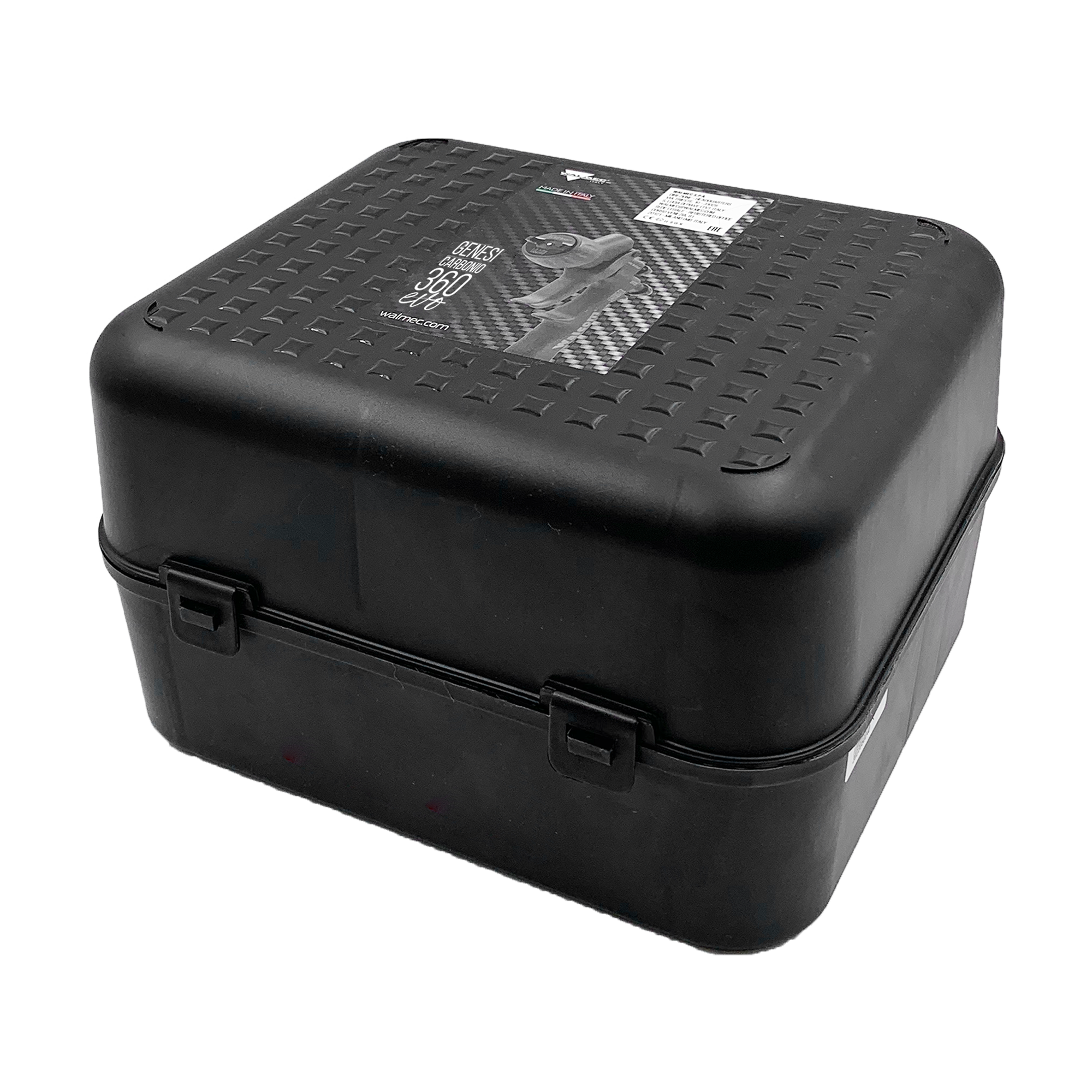

packaging
Two types of package: 1) BOX. Cardboard box package includes: sprayguns, rebuild kit (spring, seals, air valve) wrench tool, mineral lube oil, instruction manual and warranty. 2) SUITCASE. Rigid plastic suitcase includes: spraygun, air control with gauge ( for item id 9730** and 9735**), rebuild kit (spring, seals, air valve), cup, wrench tool, mineral lube oil, instruction manual and warranty.
